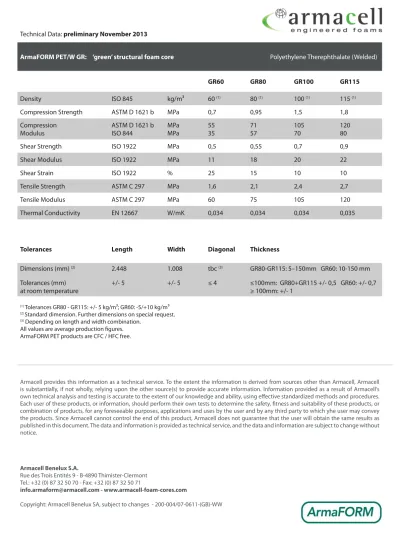

Technical Data: preliminary November 2013
ArmaFORM PET/W GR: ‘green’ structural foam core Polyethylene Therephthalate (Welded)
GR60 GR80 GR100 GR115
Density ISO 845 kg/m³ 60 (1) 80 (1) 100 (1) 115 (1)
Compression Strength ASTM D 1621 b MPa 0,7 0,95 1,5 1,8
Compression Modulus
ASTM D 1621 b ISO 844
MPa MPa
55 35
71 57
105 70
120 80
Shear Strength ISO 1922 MPa 0,5 0,55 0,7 0,9
Shear Modulus ISO 1922 MPa 11 18 20 22
Shear Strain ISO 1922 % 25 15 10 10
Tensile Strength ASTM C 297 MPa 1,6 2,1 2,4 2,7
Tensile Modulus ASTM C 297 MPa 60 75 105 120
Thermal Conductivity EN 12667 W/mK 0,034 0,034 0,034 0,035
Tolerances Length Width Diagonal Thickness
Dimensions (mm) (2) 2.448 1.008 tbc (3) GR80-GR115: 5–150mm GR60: 10-150 mm Tolerances (mm)
at room temperature
+/- 5 +/- 5 ≤ 4 ≤100mm: GR80+GR115 +/- 0,5 GR60: +/- 0,7
≥ 100mm: +/- 1
(1) Tolerances GR80 - GR115: +/- 5 kg/m³; GR60: -5/+10 kg/m³
(2) Standard dimension. Further dimensions on special request.
(3) Depending on length and width combination.
All values are average production fi gures.
ArmaFORM PET products are CFC / HFC free.
Armacell provides this information as a technical service. To the extent the information is derived from sources other than Armacell, Armacell is substantially, if not wholly, relying upon the other source(s) to provide accurate information. Information provided as a result of Armacell‘s own technical analysis and testing is accurate to the extent of our knowledge and ability, using eff ective standardized methods and procedures.
Each user of these products, or information, should perform their own tests to determine the safety, fi tness and suitability of these products, or combination of products, for any foreseeable purposes, applications and uses by the user and by any third party to which yhe user may convey the products. Since Armacell cannot control the end of this product, Armacell does not guarantee that the user will obtain the same results as published in this document. The data and information is provided as technical service, and the data and information are subject to change without notice.
Armacell Benelux S.A.
Rue des Trois Entités 9 - B-4890 Thimister-Clermont Tel.: +32 (0) 87 32 50 70 - Fax: +32 (0) 87 32 50 71
[email protected] - www.armacell-foam-cores.com
Copyright: Armacell Benelux SA, subject to changes - 200-004/07-0611-(GB)-WW
The high performance sandwich core
• Made of recycled PET bottles
• Good temperature resistance
• Recyclable
• Good thermal conductivity
Product Characteristics
Technical Data
www.diabgroup.com
PR
1 (2) 1. Perpendicular to the plane. All values measured at +23°C
Property Test Procedure Unit PR60 PR80 PR100 PR115
Nominal Density ISO 845 kg/m3 60 80 100 115
Compressive Strength1 ISO 844 MPa 0.7 0.95 1.5 1.8
Compressive Modulus1 ASTM D 1621 b MPa 55 71 105 120
Compressive Modulus1 ISO 844 MPa 35 57 70 80
Tensile Strength ASTM C 297 MPa 1.6 2.1 2.4 2.7
Tensile Modulus ASTM C 297 MPa 60 75 105 120
Shear Strength ISO 1922 MPa 0.5 0.55 0.7 0.9
Shear Modulus ISO 1922 MPa 11 18 20 22
Shear Elongation ISO 1922 % 25 15 10 10
Divinycell PR is a thermoplastic sandwich core material manufactured
from recycled PET raw material. Good mechanical strength to low weight makes it suitable for goods transport applications and sandwich panelling.
Mechanical properties Divinycell® PR
Maximum processing temperature is dependent on time, pressure and processing conditions. Therefore users are advised to contact DIAB Technical Services to confirm that Divinycell PR is compatible with their particular processing parameters.
Divinycell PR is compatible with most commonly used resin systems (polyester, vinyl ester, epoxy and phenolics) including those with high styrene contents. For optimal design of applications used in high operating temperatures in combination with continuous load, please contact DIAB Technical Services for detailed design instructions.
Applications within
• Goods Transport
• Panelling
• Nacelles
DIAB Group Box 201
SE- 312 22 Laholm, Sweden Phone: +46 (0)430 163 00 Fax: +46 (0)430 163 96 E-mail: [email protected]
www.diabgroup.com Technical Characteristics Divinycell® PR
Physical characteristics
Characteristics1 Unit PR60 PR80 PR100 PR115 Test method
Density variation % ± 5 ± 5 ± 5 ± 5 ISO 845
Thermal conductivity2 W/(m-K) 0.034 0.034 0.034 0.034 ISO 12667
Format, color Unit PR60 PR80 PR100 PR115
Plain sheets Length mm 2448 2448 2448 2448
Width mm 1005 1005 1005 1005
GS sheets Length mm 1224 1224 1224 1224
Width mm 1005 1005 1005 1005
Color Light green Light green Light green Light green
1. Typical values are approximate 2. Thermal conductivity at +20°C
3. Measured at different thicknesses, contact DIAB fo more information.
2 (2) Disclaimer:
This data sheet may be subject to revision and changes due to development and changes of the material. The data is derived from tests and experience. If not stated as minimum values, the data is average data and should be treated as such. Calculations should be verified by actual tests. The data is furnished without liability for the company and does not constitute a warranty or representation in respect of the material or its use. The company reserves the right to release new data sheets in replacement.
All content in this publication is protected by international copyright laws. Copyright © DIAB July 2013.
Issued: July 2013 Doc No: PR July 2013 rev2 - SI The product is made by Armacell
Other dimensions are available on request.
