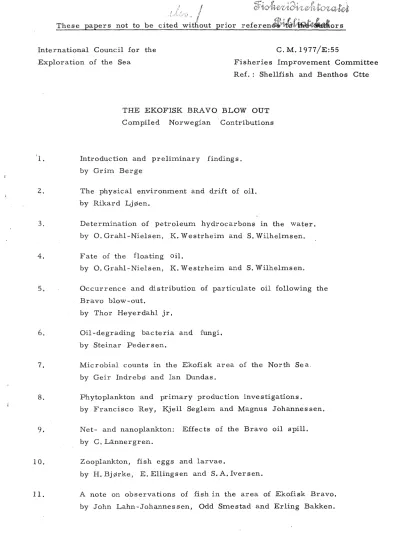

THE EKOFISK BRAVO BLOW OUT Compiled Norwegian . Contributions
Introduction and preliminary findings.
by Grim Ber ge
The physical environment and drift of oil.
by Rikard LjiiSen.
Determination of petroleum hydrocarbons in the water.
by O. Grahl-Nielsen, K. Westrheim and S. Wilhelmsen.
Fate of the flo.ating oil.
by O. Grahl-Nielsen, K. Westrheim and S. Wilhelmsen.
Occurrence and distribution of particulate oil following the Bravo blow-out.
by Thor Heyerdahl jr.
Oil-degrading bacteria and fungi.
by Steinar Pedersen.
Microbial counts in the Ekofisk area of the North Sea.
by Geir IndrebiiS and Ian Dundas,
Phytoplankton and primary production investigations.
by Francisco Rey, Kjell Seglem and Magnus Johannessen, Net- and nanoplankton: Effects of the Bravo oil spill.
by C. Lannergren.
Zooplankton, fish eggs and larvae.
by H. BjiiSrke, E. Ellingsen and S. A. Iversen,
A note on observations of fish in the area of Ekofisk Bravo.
by John Lahn-Johannessen, Odd Smestad and Erling Bakken.
- 1. 1 -
Introduction an~reliminary findings
by
Grim Berge
Institute of Marine Research, Bergen Norway
The preliminary re sults from the investigations carried out during and immediately following the Ekofisk Bravo blow-out
were published in a previous report (Institute of Marine Research, 1977). The report had a limited distribution, therefore its major parts are included and updated with further results in the present papers. The field observations were completed by the end of
July. Considerable material, however, still remains for analytical treatment and these papers are therefore also to be considered
"preliminary".
The blow-out occurred on Friday night April 22 at the oil pro- duction platform Bravo, situated at 56°33'N, 03012. 2 'E within the Ekofisk field in the North Sea. The blow-out resulted in discharge of crude oil and gas in a mixture of 2: 1 through an open production pipe about 20 m above the sea surface. The dis- charge rate was at the time of the accident estimated to be 3 - 4000 tons of oil per day, (loc. sit. 1977). Later evidence of the presence of obstructing items in the pipe suggests that this was an over-estimate, and a more probable rate would be 2 - 3000 tons of oil per day. The mixture had a temperature of more than 750C at the escape point, and it was blown another 30 m into the air where it partly dispersed and evaporated before the remainder showered down over the sea surface. Depending on wind and surface water movements, the resulting oil spread in different directions and attained varying shapes and consistencies, patches of oil up to 1 cm thick and water-in-oil emulsions interchanging with the more commonly occurring thin film and streamers of oil.
- 1.
2 -The blow-out lasted for
7i
days until, after several attempts, a team of experts succeeded in capping the well at 1105 on April 30. It is assumed that about 40% of the escaped oil hadby then evaporated, indicating that some 9-13000 tons still remained on the sea. This figure is only preliminary, as an official
commission is still investigating the accident.
In order to appraise the dimensions of the Bravo accident, a brief review of some previous oil disasters that caused world- wide publicity may be useful:
The "Torrey Canyon" grounding, 1967 118 000 tons Scilly Isle s
The Santa Barbara blow-out 1969 15 000 11 The Chevron, Gulf of Mexico blow-out 1970 5 000 "
The "Metula" grounding
Straits of Magellan 1974 50 000 11
The "U r Quiola" grounding
La Coruna, Spain 1976 100 000 11
The "Argo Merchant" grounding
Nantucket Island 1976 26 000 11
Viewed in this perspective of recent major oil spills, the Bravo blow-out may seem moderate. However, it all happened in an area of considerable fishing interest and without the success in capping the pipe it might have ended up as a major disaster.
Ekofisk crude oil is of low viscosity and under the described circumstances it spread rapidly over the surface of the sea.
It was consequently difficult to recover by mechanical means.
The oil had a high content of volatile aromatic hydrocarbons which are also known to include the more toxic compounds to marine living resources. It is easily dispersable into water by chemical means. However, chemical dispersion was assumed to increase the hazard to sensitive components of the living resources, espe- cially drifting eggs and larvae. Since these were most susceptible and no coastal interests seemed to be immediately threatened, it was decided to leave the oil drifting meanwhile, keeping this decision open for reconsideration if the situation should change.
- 1.
3 -It was additionally decided to apply all available mechanical means to recover as much of the drifting oil as possible, and 800 - 1000 tons were therby recovered. Chemical dispersants were only applied for safety reasons on one occasion when about 50 tons were sprayed onto oil drifting toward·s the inhabited Ekofisk City.
The North Sea contains fish resources of considerable importance to the coastal countries. International fisheries in this area amount to about 3 mill. tons per year, as exemplified by catches of the major species in 1975:
Saithe 271 148 tons Herring 365 209 11 Mackerel 317 8CO 11 Norway pout 559 600 11 Sand eel 424 800 11
Cod 219 976 11
Haddock 190 118 11 Whiting 168 099 11 Plaice 124 193 11
Sole 18 761 11
Blue whiting 41 000 11
These resources reproduce at rather specific spawning sites spread over the entire North Sea, some of which are located around the Ekofisk field. This applies, for example, to the very important mackerel resource, where Ekofisk is centered in the middle of its spawning area (Fig. 10. 6).
Several of the fish are spring spawners, where spawning is more or less timed to the vernal development in the plankton. During winter and early spring poor stratification in the waters and the lack of light result in poor plankton production. Stratification in the central North Sea will normally develop in April, and a typical spring bloom of phytoplankton then begins. It is followed by
spawning and rapid developments in the zooplankton. Eggs and nauplii of copepods, especially Calanus spp~, constitute the most
- 1.
4 -important food for the fish larvae, and their abundance is a pre- requisite for success in fish reproduction.
It was feared that the blow-out might coincide with this sensitive stage in the biological development of the fish, and especially that products of the mackerel spawning might be exposed to the oil and its effects.
It was recognized to be the task of this Institute to describe the exposed living resources and the possible effects of the oil on
their physiology and behaviour as well as the distribution and fate of the oil in the marine environment. An improvised program was developed containing the following elements:
1. The occurrence and distribution of living resources, with emphasis on plankton, including fish eggs and larvae.
2. Recording of ongoing fisheries in the area threatened by the oil spill and the abundance of fish resources on which they were based.
3. Recording of possible irregularities in mortality and development of plankton and fish larvae.
4. Sampling of sea water for chemical analysis of the horizontal and vertical distribution of petroleum hydrocarbons.
5. Sampling of fish and plankton for chemical analysis on contents of petroleum hydrocarbons.
6. Sampling of oil from the surface for chemical analysis of the environmental effects on the oil.
7. Distribution of oil degrading micro-organisms and the effect of oil on the micro£lora.
8. Experimental studies on acute lethal and sublethal effects of the contaminated waters on larvae of fish and of invertebrates.
- 1.
5 -9. Occurrence and distribution of particulate oil following the blow- out. Recording of oil drift.
10. Standard hydrographical program to describe the physical environmental condition.
The program did not cover all possible aspects of the encountered pollution situation. It was, however, realistic in relation to
available experts and equipment within our own and related insti- tutes, and could be put into operation at short notice. Recognizing the international interests in the pollution effects and also with a view to obtaining a broader expertise, invitations to participate were given to fisheries scientists of other North Sea countries and
to ~xperts from other Norwegian laboratories.
With certain adaptions to the continuously changing situation, the above program constituted the basis for a sequence of observations, some of which covered the entire period from 36 hrs after the outbreak until 2 months after its closure (Table 1. 1)
Table
1.1.
Ships and survey periodsShip Date
R/V "Johan Hjort March 8
-
31KNM "Sleipner" Aptil 24
-
25R/V "G. O. Sars" April 27
-
May 1R/V "Johan Hjort" April 27
-
May 1R/V "Johan Hjort" May 1 - 4 R/V "G. O. Sars" May 10
-
16R/V "Johan Hjort" May 31
-
June 17R/V "Johan Hjort" July 11
-
30Based on information on the distribution and drift of the oil, grid systems of stations were planned for each cruise to cover both the polluted waters as well as the neighbouring non-polluted waters, for reference (Fig. 1. 1 - 1. 7).
- 1. 6 -
In addition to the Norwegian research activities, several of the neighbouring countries offered their cooperation and executed
coordinated programs. R/V "Corella" from Lowestoft, R/V "Explorer"
from Aberdeen and R/V "Dana" from Copenhagen which were on the scene during or shortly after the blow-out also communicated their activities and findings to the Norwegian research vessels. This information was highly appreciated and enabled us fo carry out our additional task of twice daily reporting the developments in the field to the Norwegian au:thorities in a better way. Ger:man and Swedish
research vessels also carried out specific research programs, and Phillips Petroleum Co., the operator of the oil field concerned, organized their own research team. The value of these joint efforts is appreciated especially in re spect to certain intercalibration pur- poses, as well as for the discussion of the different approaches and experience gained in the complex problem of recording fate and effects.
The following findings are extracted from the present reports:
Variable winds in the period following the blow-out transported the resulting oil slick back and forth within a rather limited area.
During the first 2 - 3 weeks the transport was dominantly in a northerly direction, and then in the next 4 - 5 weeks it was in a southerly direction (Fig. 2. 15). Towards the end of June the
o o ' 0
patch was centered around 54 30'N and 2 30' - 3 E, (Fig. 5.3) and had by then drifted over the area between this position and 5S030'N and 20 and 40E. At the end of July oil was observed near the Ekofisk field but chemical analyses identified this as a mixture of Ekofisk and other oils.
The occurrence and consistency of the oil changed with ti:me, the original patches being broken up and gradually attaining a granulated appearance. Fro:m the second week onwards only patches of granu- lated oil were observed. Three months after the blow-out a mini- :mum of 150 tons or 1. 710 of the assumed oil spill remained as drifting tar balls in the surface layers. An unknown amount
remained suspended in the water masses and/or sedimented out on the
- 1.
7 -bottom. The tar balls were for the latter half of the elapsed period scattered over an area of at least 55 000 km 2, in concentrations in June/July averaging 2.5 mg/m2
sea surface, which has previously been classified as heavy pollution. Follow-up
investigations may reveal the lifetime of these tar balls in the North Sea. Oil degrading bacteria were present all over the area, but seemingly the fresh oil had some inhibiting effect,
thereby reducing the numbers of bacteria 'recorded in the surface water near the platform during the initial stages of the blow-out
(Fig.
6. 1 - 6.3).
Total counts of micro -organisms about1
week later showed even distribution and their abundance did not indicate traceable effects of the oil.A number of oil samples from the surface of the polluted area, collected either by bucket or by Otter trawl, were analysed chemically. The samples contained from 30 to 70% water.
The dis appearance of the lighter components of the oil due to weathering processes accounted for a loss of more than 50% of
the original weight after a few days. With reference to the relative composition of aromatic hydrocarbons with low volatility, it was possible to identify oil lumps collected in June and July as Bravo oil and to distinguish them from lumps of other origins.
Oil-in-water emulsion wa s detected in <:oncentrations of up to approximately 300
surface oil in
micrograms/l in water under relatively fresh the near surroundings of the Bravo platform.
Small but significant amounts of dis solved aromatic hydrocarbons were found over a larger area (Fig 3.2 - 3.5). No vertical gradient could be detected down to 10 m. Except perhaps for the area of very fresh oil pollution, the concentrations recorded in the water column were below those observed in laboratory tests as having acute lethal effects on the more sensitive stages of fish development.
Hydrographic observations indicated that there were various
distinct water masses in the Ekofisk area during and immediately after the blow-out. Dominating was a cold core of winter-fol-med
- 1. 8 -
water in the central part of the investigated area, which was covered by an clpper layer of coastal water to the north-east and to the south-west was limited by Atlantic water (Fig. 2. 2).
At the outbreak the temperature of the surface layers was below normal, and except for the north-easterly corner of the grid
(Fig. 2. 2) no stratification existed (Fig. 2. 14). From May on, stratification . developed gradually and the homogeneous top layer decreased from 50 m in April to less than 20 m in the middle of May.
The hydrographic situation was reflected in the biological develop- ment, which during and immediately after the blow-out on average could, be characterized as being in an early spring stage. The vertical mixing removed the producing stock of phytoplankton from the euphotic zone and resulted in slow progress and long duration of the primary production in step with the development of the transition layer.
The variations observed in the rates of primary production and the stock of chlorophyll were generally attributable to differences in the physical conditions of the respective water masses. Statistical treatment of the production indices howeve r, revealed that shortly after the outbreak an area limited to a few square nautical miles around and eastwards of the platform had significantly reduced productivity, thus indicating an oil effect (Table 8. 2).
The phytoplankton was dominated bY' larger types (diatoms), where the fraction larger than 30
pm
counted for more than 50% of the primary production (Table 9.1).
No significant change in thecontribution of different size groups of ~the plankton in the primary production (Table 9.2), was observed under the varying exposures to the oil hydrocarbons. '
Similarly, as for the phytoplankton, and pos sibly as a consequence of the
delayed development of the' same, the zooplankton biomass during the shortly after the blow-out was low. Krill was most abundant, and
Calanus spp. were dominant among the copepods.
- 1. 9 -
The progressive development of the plankton seemed normal, and except for a smaller area near the Bravo platform, no obvious differences were observed in distribution and composition within and outside the polluted areas. Repeated observations, however, showed the presence of dead copepods near the platform, and together with the reduced primary production indices in this locality, this indicates acute lethal effects of the more freshly discharged oil.
There were few fish eggs and yolk sac larvae in the area during the outbreak and immediately following it, and those found were mainly those of long rough dab and the cod family (whiting, haddock and cod), occasionally mixed in with eggs of dab and plaice. A few sand eel larvae were found in the southern part of the region.
Mackerel spawning commenced about the middle of May and its further development followed a normal pattern. The ichtyplankton seemed healthy and no obvious effects of the oil were revealed on it.
There was low abundance of fish at the time of the blow-out and for a short time afterwards. Very few pelagic fish were recorded,
the main component being O-group herring scattered more or less o:ver the entire area. Demersal fish occurred in quantities
estimated to be approximately 0,5 tons/km2
on overall average, with the highest abundance to the north-east of Ekofisk (Figs. 11. 2 -11. 4).
This picture seemed to change little in the following months, except for pelagic fish where the abundance of mackerel
increased markedly. No obvious effects of oil were revealed in relation to fish distribution or abundance.
Not all the observations have yet been reported on, and important data on the contents of hydrocarbons in fish and plankton when analysed, will add valuable evidence as to pos s'ible effects.
On summarizing the findings so far, however, they all indicate that the acute effects Were small. Although sublethal effects cannot be excluded, the low concentrations of hydrocarbons in the water columns outside the immediate neighbourhood of the platform, combined with the scarce availability of sensitive resources, makes it unlikely that serious acute harm on the resources should result.
- 1.10 -
It is evident that several factors account for this: the high
temperature of the oil on escape, and the fact that winds and rapid surface spreading caused efficient evaporation of the most volatile and
toxic compounds. Furthermore, the unstable conditions of the water masses resulted in effective dilution of dispersed and dissolved hydrocarbons.
2' I' o·
61' _ _ '---_1-
[1 I'{i
8",
,jf'1"
