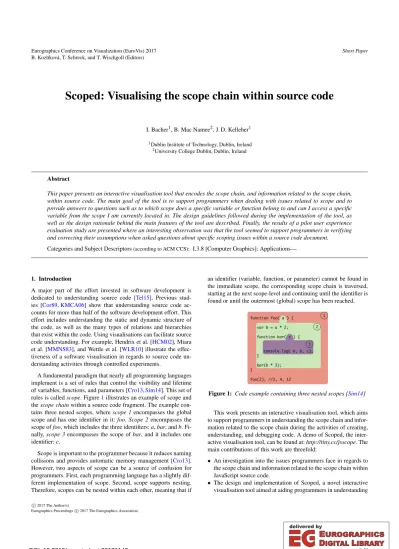

Scoped: Visualising the scope chain within source code
I. Bacher1, B. Mac Namee2, J. D. Kelleher1
1Dublin Institute of Technology, Dublin, Ireland
2University College Dublin, Dublin, Ireland
Abstract
This paper presents an interactive visualisation tool that encodes the scope chain, and information related to the scope chain, within source code. The main goal of the tool is to support programmers when dealing with issues related to scope and to provide answers to questions such as to which scope does a specific variable or function belong to and can I access a specific variable from the scope I am currently located in. The design guidelines followed during the implementation of the tool, as well as the design rationale behind the main features of the tool are described. Finally, the results of a pilot user experience evaluation study are presented where an interesting observation was that the tool seemed to support programmers in verifying and correcting their assumptions when asked questions about specific scoping issues within a source code document.
Categories and Subject Descriptors(according to ACM CCS): I.3.8 [Computer Graphics]: Applications—
1. Introduction
A major part of the effort invested in software development is dedicated to understanding source code [Tel15]. Previous stud- ies [Cor89,KMCA06] show that understanding source code ac- counts for more than half of the software development effort. This effort includes understanding the static and dynamic structure of the code, as well as the many types of relations and hierarchies that exist within the code. Using visualisations can facilitate source code understanding. For example, Hendrix et al. [HCM02], Miara et al. [MMNS83], and Wettle et al. [WLR10] illustrate the effec- tiveness of a software visualisation in regards to source code un- derstanding activities through controlled experiments.
A fundamental paradigm that nearly all programming languages implement is a set of rules that control the visibility and lifetime of variables, functions, and parameters [Cro13,Sim14]. This set of rules is calledscope. Figure1illustrates an example of scope and thescope chainwithin a source code fragment. The example con- tains three nested scopes, wherescope 1encompasses the global scope and has one identifier in it:foo. Scope 2encompasses the scope offoo, which includes the three identifiers:a,bar, andb. Fi- nally,scope 3encompasses the scope ofbar, and it includes one identifier:c.
Scope is important to the programmer because it reduces naming collisions and provides automatic memory management [Cro13].
However, two aspects of scope can be a source of confusion for programmers. First, each programming language has a slightly dif- ferent implementation of scope. Second, scope supports nesting.
Therefore, scopes can be nested within each other, meaning that if
an identifier (variable, function, or parameter) cannot be found in the immediate scope, the corresponding scope chain is traversed, starting at the next scope-level and continuing until the identifier is found or until the outermost (global) scope has been reached.
Figure 1: Code example containing three nested scopes [Sim14]
This work presents an interactive visualisation tool, which aims to support programmers in understanding the scope chain and infor- mation related to the scope chain during the activities of creating, understanding, and debugging code. A demo of Scoped, the inter- active visualisation tool, can be found at:http://tiny.cc/jsscope. The main contributions of this work are threefold:
• An investigation into the issues programmers face in regards to the scope chain and information related to the scope chain within JavaScript source code.
• The design and implementation of Scoped, a novel interactive visualisation tool aimed at aiding programmers in understanding
c
2017 The Author(s)
Eurographics Proceedings c2017 The Eurographics Association.
B. Kozlíková, T. Schreck, and T. Wischgoll (Editors)
the scope chain, as well as information related to the scope chain within source code documents written in JavaScript.
• A pilot user experience evaluation study which gathered further design requirements and investigated user behaviour when inter- acting with Scoped.
The remainder of this paper is structured as follows. Section2 presents related work in regards to visual representations of source code in combination with source code editors. Section3discusses comprehension issues programmers face, with particular focus on issues specific to JavaScript and the scope chain within JavaScript.
Section4describes Scoped and the design rationale behind various aspects of the tool. Section5presents findings from a pilot user ex- perience evaluation study. Finally, section6presents implications for future work.
2. Related work
To the best of our knowledge, there are a limited number of visual tools aimed at helping programmers understand the scope chain and information related to the scope chain within source code.
Microprints [DLR05] is a visualisation technique which builds on the code-map metaphor [BMK17] and encodes the structure of source code. The technique can be used to show information related to state changes, method control flow, and method invocations. The authors propose three variations of the technique, specialised on each of these aspects. Each variation uses a different colour map- ping to encode information. For example when dealing with state changes, assignments are displayed in red, method arguments in purple, the self variable in blue, instance variables in cyan, and global variables in yellow.
Bacher et al. [BMK16b,BMK16a] present two visualisation tools that use tree visualisation techniques to encode the various hierarchies within a source code. The first tool [BMK16b] uses an icicle tree [HBO10b] in combination with a source code editor to encode the hierarchical structure of the nested elements (tags) in HTML documents. The second tool [BMK16a] incorporates ici- cle trees, node-link trees, and circular tree maps in combination with a source code editor, to encode the control structure and scope chain within source code. Both of the visualisations are linked to the source code editor. Moving the cursors to a different element, control structure, or scope within the code will update the visuali- sations accordingly.
Cross et al. [CHM98] introduce the control structure diagram (CSD), which augments indented program text in order to make the nesting and scope of source code more explicit [Die07]. The authors state that many programmers consider the source code to be the only trusted specification of the software, therefore, the vi- sualisation adds graphical constructs to the code, without disrupt- ing its familiar appearance. For example, vertical lines are drawn over the code in order to show the extent of code blocks, and ver- tically stretched oval lines are used to show the extent of loops.
Furthermore, diamond glyphs are used to indicate the alternatives of conditional statements. The primary purpose of the CSD is to reduce the time required to comprehend source code by clearly de- picting the control constructs and control flow at all relevant levels of abstraction. In a controlled experiment, the authors show that
CSD has a positive effect on program understanding in regards to shortening response times and increasing correctness [HCM02].
It is also worth mentioning that modern browsers such as Google Chrome and Mozilla Firefox provide developers with a set of web authoring and debugging tools. These tools can be used to set JavaScript breakpoints, which enable the user to pause the exe- cution of a program on a specific line of code. While paused, a pane can be used to view the values of variables in the local, ances- tor, and global scopes. However, the code must first be executed to achieve this and no visual overview of the scope chain is provided.
3. Code comprehension issues
It is difficult to consider visualisation without also considering the task it is meant to support. It is unlikely that any single visualisa- tion tool can address all issues related to source code understand- ing simultaneously. In order to design and develop an interactive visualisation tool that facilitates understanding a scope chain and information related to it, we must first examine the comprehension difficulties associated with source code understanding, specifically those related to scope.
LaToza and Myers [LM10] surveyed 179 professional develop- ers about hard-to-answer questions they asked during the process of creating, debugging, and understanding code, in order to get a better understanding of a developer’s information needs. The au- thors were able to synthesise 94 distinct questions which could be split into 21 categories. Interesting questions in the context of scope issues include: Where (in which scope) was a specific variable de- fined and where in the code can a global variable be changed. Fard and Mesbah [FM13] propose a list ofcode smellsfor applications written in JavaScript. Code smells are patterns in source code that indicate potential comprehension and maintenance issues. Once de- tected, code smells need to be re-factored to improve the design and overall quality of the code [FM13]. The list is composed of 13 code smells, where 7 are existing well-known smells adapted to JavaScript, and 6 are specific JavaScript code smells, collected from various JavaScript development resources. The smells related to scoping issues include:thiskeyword usage, variable naming con- flicts, scope chaining, nested callbacks, and excessive global vari- ables.
Examining the literature related to comprehension difficulties as- sociated with source code understanding was a starting point for obtaining information requirements for the design and implementa- tion of Scoped. To gather further information requirements, specif- ically ones related to scoping issues, an analysis of the 50 most popular stack overflow questions was conducted. The question re- trieved were tagged with the keywords “scope” and “JavaScript”
and were categorised into 4 broad categories:Identifiers(36%),this context(36%),design issues(17%), andother(17%). The identi- fiers category deals with issues regarding the declaration, accessi- bility, and state of an identifier (variable, function, and parameter).
Thethiscontext category is concerned with issues relating to the thiskeyword associated with each individual scope, as the use of the keyword within source code has specific behaviour associated with it. The design issues category includes issues corresponding to design decisions programmers make during the process of writing
and modifying code. Finally, the other category includes the usage of specific methods and frameworks.
In this work we will concentrate on the first category (identifiers) and information related to this category. This choice is supported by the literature presented earlier in this section, as it shows that many maintenance and comprehension issues are due to the poor under- standing of scope. Therefore, Scoped should aid programmers in answering questions such as:in which scope is an identifier de- clared,can an identifier be accessed from the current scope, and is an identifier that has already been defined within the parent or global scope being overwritten?
4. Design
Following [CFM05,Die07,HPS14,PQ06] we describe the system under the following principles: target users, language specific, nat- ural mapping, and link to the code.
Target users:Over fifty thousand programmers participated in the stack overflow 2016 survey [Sta16], which asked questions re- lated to preferred technology, experience, and occupation. Out of all of the participants, only 7% identify as “rockstars” (expert pro- grammers). Furthermore, 59% are under the age of 29 and 50.3%
have less than 5 years of programming experience. Using this in- formation and the assumption that expert programmers do not have any difficulties in regards to scope, the presented tool is targeted towards non expert programmers. We define non expert program- mers as programmers that do not use JavaScript on a day to day basis and have less than 5 years of experience using the language.
Language specific:Scope rules are implemented differently in different programming languages, and so some programming lan- guages are more prone to cause scope comprehension issues than others [KMCA06]. For this work the programming language of choice is JavaScript, as the syntax of the language makes false promises that can lead to errors [Cro13,Sim14]. This choice is sup- ported by the comprehension issues presented in Section3, as it shows that many maintenance and comprehension issues are due to the poor understanding of scope within JavaScript source code.
Natural mapping:Scope can be described as a series of neatly nested “bubbles” that each act as a container, in which identi- fiers are declared [Sim14]. Building on this metaphor, we believe that a tree visualisation technique which shows parent child re- lations using containment is best suited for the task of visual- ising the scope chain hierarchy within a source code document.
These tree visualisation techniques include treemaps [JS91], cir- cular treemaps [WWDW06], icicle trees [HBO10a], and sunburst trees [SCGM00]. Each of these techniques have their pros and cons, however, we believe that the circular treemap is well suited for encoding the scope chain hierarchy of a source code document, as the hierarchical structure is explicitly shown and the technique strictly follows the “bubbles” metaphor used to explain the concept of scope. For the next version of Scoped, an interesting user study would be to investigate the effectiveness of each of these tree vi- sualisation techniques, as to date, we do not have data on which technique is optimal for the visualisation of a scope chain within a source code document.
Link to code:Developers become ‘code-centric’ when working
with code, therefore visual representations of source code need to clearly link the encoded information to the code, especially when tasks involve source code manipulation [CFM05]. Programmers want and need information to be provided in the context of their working environment, which is a source code editor. Cordy [Cor03]
states that to achieve success, tools must present information in the context of source code and provide strong coupling between code and the visualisations.
Figure 2shows a screenshot of Scoped. The tool consists of three main components: A) An overview visualisation encoding the scope chain within source code. B) The identifier (variable, func- tion, and parameter) information panel. C) a source code editor.
Colour is used to link each of the components. Within the overview visualisation, green is used to show in which scope the cursor is currently located in within the source code editor. Blue is used to represent the parent and ancestor scopes which the currently se- lected scope can access, and grey is used to represented the re- maining scopes that cannot be accessed. Additionally, the type of scope (function or block) is encoded using solid or dashed lines.
The identifier information panel presents variables, functions, and parameters that can be accessed in the currently selected scope.
Colour is used to show local identifiers (green) and identifiers be- longing to parent or ancestor scopes (blue). The globe icon repre- sents identifiers that belong to the global scope. Within the source code editor the currently selected scope is highlighted in green (as shown in the Figure2), parent and ancestor scopes are highlighted in blue, and scopes which cannot be accessed are highlighted in grey, when hovering over an identifier in component B) or a node within component A).
5. User experience evaluation
A pilot user experience evaluation study [LBI∗12] was conducted to probe for further design requirements and to understand user be- haviour when interacting with Scoped. Five participants took part in the evaluation study which lasted for approximately 45 minutes for each participant. The majority of the participants were post- graduate students and none used JavaScript on a day to day basis.
In regards to using students, Kitchenham et al. [KPP∗02] state that
“using students as subjects is not a major issue as long as you are interested in evaluating the use of a technique by non-expert users”.
The evaluation followed a think aloud protocol [Nie94], where participants were encouraged to verbalise their thoughts as they moved through the user interface to complete the given tasks. Each participant was first given a short introduction to the visualisation tool, where the main features and functionality of the tool were explained. Next, each participant worked through a 15 minute tu- torial together with the observer. After the tutorial, the participants were given 2 tasks to complete. The first task involved answering a series of questions related to scope issues in the context of the iden- tifier category presented in Section3. The questions included ask- ing which identifiers (variables and functions) belonged to a spe- cific scope, moving the cursor to a specific line in the code and answering in which scope the cursor is currently located in, as well as moving the cursor to a specific line in the code and answering whether a certain identifier was accessible from that line. The sec- ond tasks involved finding a bug within a source code fragment,
Figure 2: Scoped: A) Scope chain visualisation, B) Identifier information view, C) Code editor. Colour highlighting is used to link the three components, where green represents the currently selected/local scope, blue represents scopes that can be accessed from the currently selected scope, and grey represents scopes that cannot be accessed from the currenlty selcted scope.
where the bug was composed of a local variable using the same name as a variable defined within the parent scope. After the par- ticipants completed both of the tasks, they were asked to fill out a short survey, which included questions relating to their experience with the tool.
All of the participants frequently interacted with the visualisa- tions within Scoped when attempting to answer the questions dur- ing the first task. When answering the question of which identi- fiers belong to the global scope, none of the participants investi- gated the source code. Instead they moved the cursor to the global scope within the source code editor or clicked on the circle rep- resenting the global scope within the scope chain visualisation and then investigated the identifier information panel in order to answer the question. A participant commented “This is easier than looking through the code, all I have to do is click on a circle or move the cursor to a function and then I can find the information I am look- ing for within the list view”. When asked to which scope a specific variable belonged, the majority of the participants used the visuali- sation first, and then looked at the code. An interesting observation was that the participants seemed to use the visualisations to verify their assumptions before answering the questions.
During the second task the participants mainly focused on the code in order to understand its functionality. After the participants understood how most of the code worked, they attempted to look at the code in order to find any lines that might seem suspicious.
When a suspicious line was found, the participants glanced at the visualisations within the tool in order to investigate which identifier belonged to which scope and if an identifier could be accessed from the currently selected scope.
The participants brought several issues to our attention. For ex-
ample, one participant stated that the identifier list view should sup- port changing lines within the source code editor (e.g. navigating to a specific line of code where a specific variable is declared or accessed). While another participant stated that the link between the source code editor and the identifier information panel could be improved by adding a mechanism to highlight which variable is currently of interest to the user. Most participants also stated that it would have been helpful if labels were present within the scope chain visualisation. We plan to use the feedback provided by the participants in the next design iteration of the tool.
6. Conclusion
This work presented Scoped, an interactive visualisation tool to support a programmer’s understanding of the scope chain and infor- mation related to the scope chain within a source code document.
Additionally, the design rationale behind the main features of the tool and the issues the tool aims to address were presented. In the future we plan to integrate the feedback from the user experience evaluation study in order to improve the design of Scoped. We also plan on conducting further empirical evaluations to gather qualita- tive and quantitative data on the usability and usefulness of combin- ing source code editors with compact visual representations encod- ing the complex properties of source code. Due to the positive feed- back received from the user experience study, we believe that pro- grammers are open to adopting visual tools during the process of working with source code, given that the visualisations within the tools clearly link the source code and that the source code clearly links to the visual representations. A demo of the tool can be found at:http://tiny.cc/jsscope.
