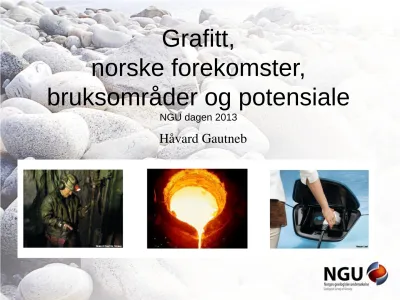

Grafitt,
norske forekomster,
bruksområder og potensiale
NGU dagen 2013
Håvard Gautneb
The global graphite market
Natural and synthetic
graphite have different
applications and the markets and do not compete
Natural graphite, 3 different types
Amorphous graphite
Flake graphite
Vein graphite
50% of world output
Low grade metamorphic and contact
metamorphic formation from coal
49% of world output
High grade metamorphic formation from organic rich sediments
1% of world output 2CO = C + CO2
Why graphite
BGS: Graphite, one of the minerals most likely to be in short supply.
US Dept. of Homeland Security: USA will be hurt if terrorist disable Chinese graphite production.
1 million new EV’s = 5 new graphite mines
(30.000 t/a production)
(15 mines of the size of Skaland)
Graphene
Can be produced from flake graphite,
(presently in lab scale only)
Some application of graphene
Financial Times 27. jan 2013
Teknisk ukeblad 29 jan 2013
Mineral deposits
in NGU databases:
•Metal deposits: 4500
•Industrial minerals: 2200
•Graphite deposits: 74
This includes active and abandoned mines, showings and exploration sites.
Check database at:
www.prospecting.no
Graphite in Norway
Graphite occurences
Senja Lofoten-Vesterålen
Rana area Mine sites
Former and present
Senja – Southern Troms area
Skaland Trælen
Bukkemoen Vardfjellet
Gjeitskaret
Spansdalen
30% C
22% C
28% C
15% C 10% C
30% C
Selected deposits with % carbon
Trælen Senja
Source: Skaland graphite
From Henderson & Kendrick 2003: NGU report no. 2003.0011 Free download at www.ngu.no
All Norwegian graphite deposits show complex multi phase folding and deformation (Bukkemoen Senja)
Graphite schists
Lofoten-Vesterålen
Golia Koven
Hornvann Skogsøy
Sommarland
Haugsneset Morfjord
15% C
15% C
25% C
18% C
20% C
10% C
25% C Selected deposits and grades (%C)
Rana area
s
Rendalsvik Nord-Værnes
Midstraumen
15% C 15% C
11% C
(amorphous)
Trælen graphite mine
Some are
abandoned mines, other are ore bodies under thin cover
Golia mine
Morfjord mine Jennestad area
The surveys future work:
Airborne geophysics
Under explored areas! New opportunities?
Graphite schists
Vegår-Søndeled area (50 km) large number of bodies with graphite bearing
rocks
Vegårdshei area southern Norway
