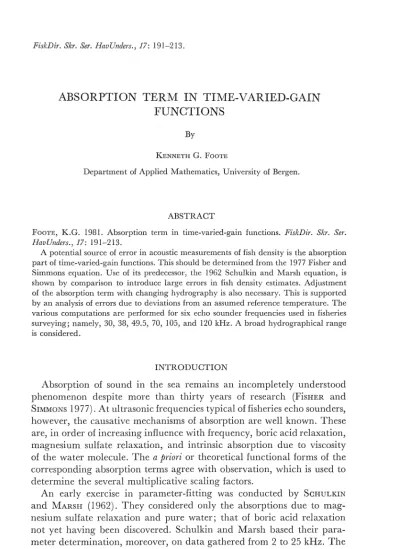

FiskDir. Skr. Ser. HavUnders., 17: 191-2 13.

ABSORPTION TERM I N TIME-VARIED-GAIN FUNCTIONS

KENNETH G. FOOTE

Department of Applied Mathematics, University of Bergen.

ABSTRACT

FOOTE, K.G. 1981. Absorption term in time-varied-gain functions. FiskDir. Skr. Ser.

HavUnders., 17: 191-213.

A potential source of error in acoustic measurements of fish density is the absorption part of time-varied-gain functions. This should be determined from the 1977 Fisher and Simmons equation. Use of its predecessor, the 1962 Schulkin and i\/larsh equation, is shown by comparison to introduce large errors in fish density estimates. Adjustment of the absorption term with changing hydrography is also necessary. This is supported by an analysis of errors due to deviations from an assumed reference temperature. The various computations are performed for six echo sounder frequencies used in fisheries surveying; namely, 30, 38, 49.5, 70, 105, and 120 kHz. A broad hydrographical range is considered.

INTRODUCTION

Absorption of sound in the sea remains an incompletely understood phenome~ion despite more than thirty years of research (F~sI-IER and SIMMONS 1977). 4 t ultrasonic frequencies typical of fisheries echo sounders, however, tlie causative mechanisms of absorptioii are well known. These are, in order of increasing influence witli frequency, boric acid relaxation, magnesium sulfate relaxation, and intrinsic absorption due to viscosity of the water molecule. Tlie n priori or theoretical functional forms of the corresponding absorption terms agree with observation, wliicb is used to determine the several multiplicative scaling factors.

An early exercise in parameter-fitting was conducted by SCHULKIN and MARSH (1962). They coilsidered only tlie absorptions due to mag- nesium sulfate relaxation and pure water; that of boric acid relaxation not yet having been discovered. Schulkin and Nlarsh based their para- meter determination, moreover, on data gathered from 2 to 25 kHz. T h e

equation thus derived applied strictly to this frequency regime. Extra- polations to lower and higher frequelzcies were to have been regarded with suspicion. This was the case, a t least, a t the lower frequencies where an anomalous absorptioii was measured by THORP (1965). At tlie higher frequencies, however, there was a general lack of data, This apparently encouraged the use of the Schulkin and Marsh equation at such fre- quencies - for want of somethiilg better.

This situation has now been remedied by two clevelopmcnts: discovery of the low-frequency souncl absorption mechanism (YEAGER el al. 1973) and measuremelit of absorption a t freclue~lcies above 25 kHz. These new data have consistently disagreed with cxtrapolations Srom the Schul- kin and Marsh equation. FISI~ER and SIMMONS (1977) have collected the extended low and high frequency data and determined an equation based on tlzree absorption mechanisms. Adoptioil of this new equation in fisheries acoustics, as lor assigning thc absorption part of time-varied-

gain functions (FORBES and NAI~KEN 1971), has been sl0~7.

It is argued in this paper that differences ill the equations of S C H U L I ~ N and MARSH (1962) and FISHER and SIMMONS (1977) are sufficiently large a t the typical echo sounder frequelzcies used in fisheries that the newer equation should be adopted. The consequences of retailling the older equation, which are often an overweighting of fish density estimates, are shown through an error analysis a t six discrete ccl~o sounder fre- quencies from 30 to 120 kHz.

A further problem in the assigizment of the absorption part of time- varied-gain functio~is is treated liere. This is that of choosillg the absorp- tion for a fixed l~yclrography, i.c., for a coilstant temperature and salinity, and ignoring changes in absorption due to changing hydrograplzy, which are common in virtually every fisheries research cruise. This in- flexibility is evidently due in part to tlie applicatioii of time-varied gain by hardware. The current and growing use of computers ill the real-time analysis of echo sounder signals obviates such application. If the time- varied gain, or a t least the absorption part of it is computer-applied, then this can just as easily as not lse acljustecl to reflect the actual survey con- ditions. Correction of the coefficient could eve11 be effected automatically at each hydrograpliic station where temperature and salinity measured by electroliic salinity-temperature-depth or conductivity-temperature- depth sensors are generally logged directly in the computer (FOFONOFF et nl. 1974, RODEN and IRISH 1975, SCARLILT 1975). I11 any case, the consequence of ignoring cha~iging llyclrograplzy is show11 by an analysis of range-dependent errors in fish density estimates. These are computed for the same six echo sounder frequencies as in compari~ig the two absorp- tion equations.

T h e various computations of paper are referred to a rather broad temperature range. This is meant to span the hydrographic conditions encountered by fisheries research vcssels. These are as varied as those of deep Arctic waters and sliallow tropical waters.

METHOD

The subjects of the present inquiry are two expressiolis for the ab- sorption coefficient of sound in sea water. Each describes the coefficient as a function of frequency, temperature, salinity, and pressure. Both are stated here for completeness.

The older of the two expressions was determined by SCI-IULICIN and MARSH (1962) on tlie basis of data from 2 to 25 kHz and a model of absorption with two mechanisms: magnesium sulfate relaxation and pure water viscosity. It is tlie follotving:

dsol = [ASfTf2/ (f T2+f2) +Bf2/f ,] (1 - 6.54

.

,

and

where f is the frequency in Hertz, T is the temperature in degrees centi- grade, S is the salinity in parts per thousand, and P is the pressure in atmospheres.

T h e newer expression for the absorption coefficient contains an ad- ditional term due to boric acid relaxation. The expression, which was derived by FISHER and SIMMONS (1977), is essentially the following:

where

f, = 1.32. 10"T+273.1) exp [ - 1700/(T+273.1)] H z

,

f 2 = 1.55. 107(T+273.1) exp [-3052/(T-t273.1)] Hz

,

and

where f, T, S, and P retain their meanings as in u',,. Tlie single differ- ence with the equation given in the reference is the illclusion here of a linear salinity dependence in A,. This was recommended, however, although specified expressly for the case S=35 ppt.

For convenience below, both absorption coefficiellts are expressed in units of decibels per meter. T h e conversion is effected by multiplying the above coefficients by 2010g,,e= 8.686, i.e.,

and

u,, = 8.686 a',, dB/m

,

where a,, and u,, are the common logarithmic measures of absorption.

Differences in u,, and a,, may be observecl directly by comparing Eqs. 1 and 2 for the same hydrographic conditions. T h e significance of the differences to fish density estimation may be seen through an analysis of errors due to the use of the Schulkin and Marsh equation for the Fisher and Simmons equation. Since the a-term in the time-varied-gain function, when applied to the signal amplitude and expressed with respect to the range r, is

where r is in metres, tlie effect on the estimate of fish density at the same range is

This expi-esses the usual assumption that the estimated density is pro- portional to the echo eiiergy or time-integral of signal intensity or squared signal amplitude (FORBES and NAKKEN 1972). Thus if uSM is used where a,, provides the correct number, tlie relative error in derived fish density estimate is

where Au = us, - ups. Positive errors denote over-estimation of density, while negative errors denote under-estimation.

No matter Iiow the absorption coefficieiit is determined, if it is not referred to the actual hyclrograpliy of fish observation, the density esti- mate will in general be biased. T h e implication of this may be judged by an analysis of the above sort, hut where the correct absorption coefficient a,, is that which obtains for tlie actual conditions, while the applied coefficient assumes another, or reference, hydrographic state. If the two values of u,, are denoted by u and a,, respectively, then the effect on tlie fish density estimate is a range dependent error of the kind show above, but where Au = u, - cr.

RESULTS

T h e two expressions for the absorptiori coefficieilt are developed pairwise in Figs. 1 and 2. T h e first shows the frequency dependence of each coefficient from 10 to 200 kHz for a range of temperatures for the salinity 35 ppt. Fig. 2 shows a similar frequency dependence for a range of salinities for the temperature 10°C.

S A L I N I T Y 3 5 PPT S A L I N I T Y 3 5 PPT

10 2 0 5 0 100 2 0 0 10 2 0 5 0 100 2 0 0

FREQUENCY (KHz) FREQUENCY (KHz)

Fig. 1. Frecluency dependence of two absorption coefficients for temperatures T = 0, 10, 20, 30, 40°C. Salinity = 35 ppt, pressure = 10 atm.

FREQUENCY ( K H z 1 FREQUENCY ( K H z )

Fig. 2. Frequency dependence of two absorption coefficients for salinities S = 0, 10, 20, 30, 35 ppt. Temperature = 10°C, pressure = 10 atm.

Figs. 3 to 8 show the temperature dependence of tlie same coefficients for a range of salinities for each of six echo sounder frequencies. These correspond to the nominal operating frequencies of echo sounders of some prominence in the surveying of fish stocks.

Differences in the Scliulkin and Marsh and Fisher and Simmons ex- pressions are illustrated through an analysis of errors in fish density estimates in Fig. 9.

T h e coi~seque~ice of not adjusting the absorptioli term in time-varied- gain f u n c t i o ~ ~ s to changing hydrographic conditions is examined in Figs. 10-16. I n all of these figures the Fisher and Simmoiis expression is used to describe both the correct value atid the erroneously applied values of the absorptioli coefficient. Each of Figs. 10-15 shows the effect of temperature deviations on the fish density error for four different refe- rence temperatuies for the same echo sounder frequency. Comparable results for the case of a 5°C reference temperature are plotted in Fig. 16 for each of the six frequencies.

DISCUSSION

Figs. 1 and 2 show the characteristic frequency dependences of the two absorption coefficients for a variety of temperatures and salinities. Differ- ences in the coefficients for tlie same frequency ancl hydrographic state are discernible, although hardly striking because of the use of logarithmic scales. TIie relative temperature atid salinity depelldences for a fixed frequency are very similar. This is not surprising as boric acid relaxation is principally a low-frequency phenomenon, with only slight influence a t

10 kHz and negligible influeilce for freq~~encies above 20 1tHz in ordinary sea water (FISHER and SIMMONS 1977). For the special, essentially theoreti- cal case of vanishing salinity, the boric acid relaxtion is seen to contribute significantly to the absorption term below about 40 kHz. Differences in the two espressiolls for absorption in sea water above 10 kHz are therefore due mainly to relative differences in the hydrographic dependences of the magnesium sulfate relaxation and pure water terms.

The temperature and salinity dependences of the two expressions are displayed in some detail for each of six echo sounder frequencies in Figs. 3-8. T h a t there are large differences in the two coefficients is olsvious. The differences are observed to be especially large for sea water of temperature less than about 15°C. This happens to describe the con- ditions common to many important commercial fish stocks (HARDEN

JONES 1968) where acoustics are 01- might be used to assess abundance.

As noted above, the computations of Figs. 3-8 were performed for the operating frequencies of standard echo sounders used in fisheries sur- veying. Because the Schulkin and Marsli expression is still widely used, the pairs of figures may be used in conjunction to determine correctiolls for the exact hydrography of interest. For those illstances in which the Fisher and Simmoils expressioll is applied under assumption of a con- stant temperature ancl salinity, whicll are found to be different during observation, the same graph will specify the correction factor.

111 these and all otlter computations of the paper the hydrostatic pres- sure is assumed to l ~ e a constalit 10 atln. This incurs an entirely negligible error for all practical situations of fish stock surveying. At 1000 m depth, for instance, the alssorption coefficient will be reduced from the values calculatecl here by a rnere one per cent.

Differences in the two absorption coefficients for the same hydro- graphic conditions are quantified in more vivid fashion in Fig. 9. This illustrates the penalty to be paid for using the Schulkin and Marsli absorption in time-varied-gain functions. The errors are observed to bear an inverse relationship to water temperature: the largest errors are associated with the lowest temperatures, wllich agrees with expectations from Figs. 3-8. At the lowest frequencies the errors become threateningly large a t 200 m depth; at frequencies above 50 kHz they are servere already a t 100 m. I11 every considered case for temperatures less thaii or equal to 20'6, use of the Schulliin and Marsh equation results in an over-weigliting of fish density, leading to corresponding over-estimation in abundance.

T h e magnitude of expected errors a t ordinary deptlis of fish detection ought to serve as a ~ i a r n i n g in the assignment of the absorption term.

??or the practical case of acoustically surveyed deep-lying fishes, such as blue whiting and a number of mesopelagic fishes, the magnitude of

S C H U L K I N A N 0 HARSH ( 1 9 6 2 1

L

1

- 5 O 5 1 0 1 5 2 0 2 5 3 0 3 5 4 0 TEMPERATURE

(DEGREES C E L S I U S )

r

- 5 O 5 1 0 1 5 2 0 25 3 0 3 5 TENPERATURE

(DEGREES C E L S I U S )

I N I T Y P T I 55 50

! 5

!O 5

o

5

o

Fig. 3. Dependence of two absorption coefficients on temperature and salinity at 30 kHz. Pressure = I0 atm.

F I S H E R AND S l i i i i O N S 1 1 9 7 7 ) 3 8 . 0 KHZ

Fig. 4. Dependence of two

1 4 1 4 absorption coefficients on

temperature and salinity at 38 kHz. Pressure = 10

1 2 1 2 atm.

1 o 1 o

-

x Y

\ \

m m

0 8 9 8

< <

x x

P. n.

J < 2

6 6

I N I T Y P P T )

4 4 3 5

3 0 2 5 2 o

2 2 15

1 o

5

o O o

- 5 O 5 1 0 1 5 2 0 2 5 3 0 3 5 4 0 - 5 O 5 1 0 15 2 0 25 3 0 35 40

TEMPERATURE TEMPERATURE

(DEGREES C E L S I U S ) (DEGREES C E L S I U S )

2 4

SCHULKIM AND MARSH (19621 FISHER AND SIMMONS (19771 Fig. 5. Dependence of twa

4 9 . 5 KHZ 2 2 4 9 . 5 KHZ absorption coefficients on

temperature and salinity at

2 0 49.5 liHz. Pressurc = 10

atm.

1 8

16

14 s x

\ m

0 1 2

4 I e

_I

-z 1 0

I t < I T Y

8 PPTI

3 5

6 3 O

2 5

4 2 0

15

2 ¹ o

5

o ^o

- 5 O 5 1 0 1 5 2 0 2 5 3 0 3 5 40 - 5 O 5 1 0 15 20 25 3 0 35 40

TEMPERATURE TEMPERATURE

(DEGREES CELSIUS) (DEGREES CELSIUS)

S C H U L K I N AND MARSH ( 1 9 6 2 1

r--'T]

- 5 O 5 1 0 1 5 2 0 25 3 0 3 5 40 TEMPERATURE

(DEGREES C E L S I U S )

F I S H E R AND SIMMONS ( 1 9 7 7 ) 7 0 . 0 K H Z

- 5 O 5 . l 0 1 5 2 0 25 3 0 35 40 TEMPERATURE

(DEGREES C E L S I U S )

Fig. 6. Dependencc of two absorption coefiicients on temperature aiid salinity at 70 kHz. Pressure = 10 atm.

S C H U L K I N AND MARSH ( 1 9 6 2 1 1 0 5 . 0 KHZ

4 5

F I S H E R AND SlMMONS L 1 9 7 7 1 Fig. 7. Dependence of two

A T 1 0 5 . 0 KHZ absorption coefficients on

- 5 O 5 1 0 1 5 2 0 25 3 0 3 5 4 0 TEMPERATURE

IDEGREES C E L S I U S 1

- 5 O 5 1 0 15 2 0 2 5 3 0 35 4 0 TEMPERATURE

(DEGREES C E L S I U S I

temperaiure and salinity at 105 kHz. Pressure = 10 atm.

I

- 5 O 5 1 0 15 2 0 2 5 3 0 3 5 4 0 TEMPERATURE

(DEGREES C E L S I U S )

I I I I I I 311

- 5 O 5 1 0 15 2 0 25 3 0 3 5 4 0 TENPERATURE

(DEGREES C E L S I U S )

Fig. 8. Dependence of two absorption coefficients on temperature and salinity at 120 kHz. Pressure = 10 atm.

1

/ / i

Salinity = 35 ppt, pres- sure = 10 ahin.

10 20 50 100 200 500 1000 10 20 50 100 200 500 1000

RANGE (Ml RANGE (M)

0 . 8 1 3 0 . 0 KHZ

-I

u 0 . 6 ASSUMED TEMPERATURE O DEG

0.6 ASSUMED TEMPERATURE 1 0 DEG

O LL u 0.4

W 0.4

) 0 . 2 0.2

.-.

< 0

2

o

W u - 0 . 2 -0.2

- 0 . 4 -0.4

ASSUMED TEMPERATURE 2 0 DEG ASSUMED TEMPERATURE 3 0 DEG

Fig. 10. Rangc dcpend- ence of relative errors in fis11 density estiinates at 30 kHz due to un- compensated deviations A T from the assumcd refcrence temperature T. A T varies inoiiotoiii- cally ihus: -10, -5, -2, -1, 1, 2, 5, 10°C except in the cases that T =

O°C, for wl~ich A T bc- gins a t -5°C: or that A T is shown explicitly.

Salinity = 35 ppt, pres- sure = 10 atm.

- 0 . 6 ~ I I I I I I I 1 I

10 20 50 100 200 500 1000 10 20 50 100 200 500 1000

RANGE (M) RANGE (M)

Fig. 1 1. Range depend- ence of relative errors in fish density estimates at 38 1cHz due to un- compensated devations A T from the assumed reference iemperature.

A T varies as described in the caption to Fig. 10.

I .o I l I I l ⁷ l .o

0.8- 3 8 . 0 KHZ

-

or 0.6- ASSUMED TEMPERATURE O DEG ASSUMED TEMPERATURE 10 DEG

O

g

W

w 0.2-

>

l- < o

-1

or -0.2- W - ^-0.2-

-0.4- - ^-0.4-

-0.6 ^I I I I I -0.6L I I I I I

10 20 50 100 200 500 1 O O 0 1 0 20 50 100 200 500 1000

1 .o 1 I I I I

0.8- ASSUMED TEMPERATURE 20 DEG

3 8 . 0 KHZ

0.6- ASSUMED TEMPERATURE 30 DEG 0.4-

0.2-

-0.2- -0.4-

-0.6 ^{l I I I I}

10 20 50 100 200 500 1000 10 20 50 100 200 500 1000

RANGE (M) RANGE (M)

ASSUMED TEMPERATURE O DEG ASSUHED TEMPERATURE 10 DEG

- ---

ASSUMED TEMPERATURE 20 DEG SSUMED TEMPERATURE 30 DEG

10 20 50 100 200 500 1000 10 20 50 I00 200 500 1000

RANGE (M) RANGE (M)

Fig. 12. Range depend- ence of relative errors in fish density estimaies at 49.5 kHz due to un- compensated devations A T froin the assuined reierence tempcrat~ire.

A T varies as described in the caption to Fig. 10.

Fig. 13. Raiige depcnd- ence of relative errors in fish density estimates ASSUMED TEMPERATURE O DEG ASSUMED TEMPERATURE 10 DEG at 70 kHz due to un- cornpensated deviations A T from thc assumed reference temperature.

A T varies as dcscribcd in the caption to Fig. 18.

o

TEMPERATURE 20 DEG ASSUMED TEMPERATURE 30 DEG

1 0 2 0 50 1 0 0 200 500 1000 1 0 2 0 50 100 200 500 1000

RANGE (M) RANGE (M)

ACSUMED TEMPERATURE 0 DEG

o

EMPERATURE 20 DEG ASCUMED TEMPERATURE 30 D

-1- -L-

10 20 50 100 200 500 1000 10 20 50 100 200 500 1000

RANGE (M) ^{RANGE (M)}

Fig. 14. Range depend- ciice of relative errors in fish density csiimaies at 105 kHz due to un- coinpensated deviations A T from the assurned reierence ternperature.

A T varies as described in the caption to Fig. 10.

Fig. 15. Range depcnd- ence of relative errors

ASSUMED TEMPERATURE O DEG ASSUMED TEMPERATURE in fish density cstimaies

at 120 1tHz due to un- cornpcilsatcd deviations A T from the assumcd rcierence tiinperaiure.

A T varies as deicribecl in the captioil to Fig. 10.

10 20 50 100 200 500 1000 10 20 50 100 200 500 1000

RANGE (M) RANGE (M)

I . o 0 . 8

n. 0 . 6 ASSUMED T E M P E R A T U R E 5 DEG ASSUMED TEHPERATURE 5 D E G

0 TT 0 . 4 W

0 . 2

-

n. - 0 . 2 - 0 . 4

- 0 . 6 A- -.I__

10 20 5 0 100 200 500 1000

I . o 0 . 8 TT 0 . 6 0

2 0 . 4

y 0 . 2

-

E - 0 . 2 - 0 . 4 - 0 . 6

1 0

I . O 0 . 8 0 . 6 0

2 0 . 4 W 0 . 2

-

E ^{- 0 . 2}

- 0 . 4 - 0 . 6

10 2 0 50 100 2 0 0 500 1000 10 2 0 50 100 200 500 1000

R A N G E (MI R A N G E (PI)

Fig. 16. Range dependence of relative errors in fish density estimates at six ultrasonic frequencies due to ullcompensated temperature deviations A T from the assumed reference temperature 5°C. A T increases monotonically thus: -10, -5, -2, -1, 1, 2, 5,

10°C unless stated otherwise. Salinity = 35 ppt, pressure = 10 atm.

errors could be coiiseque~itial to presciit or planned stock exploitation.

Even if the Fisher and Simmons expression is used to determine the absorption term, it is still possible to commit sizable errors by ignoring the influence of cliangi~lg hydrography. Figs. 10 to 16 present an a~ialysis of errors in fish density estimates associated with departures in tempera- ture from a reference temperature assumed in assigning the alssorption term. A conclusion of SIMMONDS and FORBES (1980), tliat the error in time-varied-gain function applied to a 38 kHz signal will in practice be insig~iificaiit a t depths less than 100 m, is geiicrally suls13orted here, but with more qualification. T h e present finding is tliat the likely error in

estimates of fish density a t 100 m will not exceed about 10 per cent if the temperature assumed in determining the absorption is within five degrees of the actual temperature. This conclusioii applies, moreover, a t all frequencies from 30 to 120 kHz. At depths greater than 100 m, however, the error increases rapidly. At 200 m the error varies from about 10 to 30 per cent for temperature excursions of 5°C.

I t was suggested in the introduction that adjustment of the absorption term in time-varied-gain functions for a changing hyclrograpliy often does not have to be a problem. If tlie real-time signal processiiig is con- ducted by a digital computer, then a small programiniilg addition can permit direct application or correction 01 tlic absorptioi~ term. T h e feasi- bility of this is apparent from a ilumbcr of computer applications in fisheries surveying, for example, those of SIMMONS (1975), SEIOTTON and and DOWD (1976), EDWARDS (1978), AZZALI (1979), COOMBS and FRANCIS

(1 979), and TRAYNOR and NELSON (1 979). T h e absorptioil coefficient could thus be adjusted colltinually to reflect tlie kiiowll or anticipated hydrography. If the signal processing is performed entirely by hardware, then the derived estimates of fish cleiisity slioulcl be distinguished by depth and corrected after the maililer of analysis in Figs. 10-16.

I n all of the foregoing tlie Fisher alicl Simmo~ls expression has been assumed to describe correctly the absorption coefficient. Certain short- comings are recognized, particularly in that understanding of the influence of hydrography which is needed to explain oceanic differences in absorption. At the usual ultrasonic frequencies of fisheries echo sounders, however, the Fisher and Simmons expressioli agrees well with obser- vation, unlike the older Schulkin and Marsh expression. Further re- search will undoubtedly refine the preselit description, but should not disclose any surprises or large discrepancies a t collveiltional frequencies.

As a consequence of the several error ailalyses presented here the followiilg recommendations are urged:

1. T h a t the Fisher and Simnio~ls equation be used in assigning the absorption term of time-varied-gain functions,

and

2. T h a t the estimatio~l of fish density effected with time-varied gain reflect the liydrographic conditions of observation.

Adoption of these, in addition to rendering the present study obsolete, will advance the process of coiltrolliilg errors in the acoustic assessment of fish abundance.
