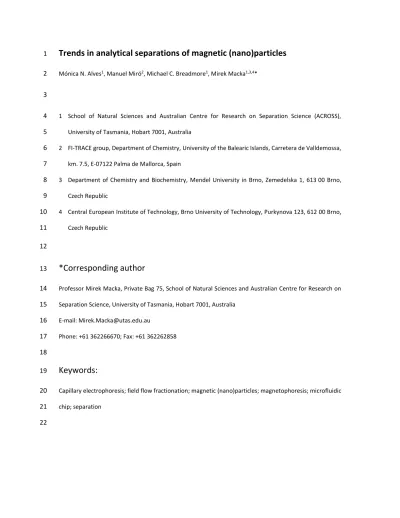

Mónica N. Alves1, Manuel Miró2, Michael C. Breadmore1, Mirek Macka1,3,4*
2
3
1 School of Natural Sciences and Australian Centre for Research on Separation Science (ACROSS),
4
University of Tasmania, Hobart 7001, Australia
5
2 FI-TRACE group, Department of Chemistry, University of the Balearic Islands, Carretera de Valldemossa,
6
km. 7.5, E-07122 Palma de Mallorca, Spain
7
3 Department of Chemistry and Biochemistry, Mendel University in Brno, Zemedelska 1, 613 00 Brno,
8
Czech Republic
9
4 Central European Institute of Technology, Brno University of Technology, Purkynova 123, 612 00 Brno,
10
Czech Republic
11
12
*Corresponding author
13
Professor Mirek Macka, Private Bag 75, School of Natural Sciences and Australian Centre for Research on
14
Separation Science, University of Tasmania, Hobart 7001, Australia
15
E-mail: Mirek.Macka@utas.edu.au
16
Phone: +61 362266670; Fax: +61 362262858
17
18
Keywords:
19
Capillary electrophoresis; field flow fractionation; magnetic (nano)particles; magnetophoresis; microfluidic
20
chip; separation
21
22
Abstract
24
Magnetic particles (MPs) and magnetic nanoparticles (MNPs) are appealing candidates for biomedical and
25
analytical applications due to their unique physical and chemical properties. Given that magnetic fields can
26
be readily used to control the motion and properties of M(N)Ps, their integration in analytical methods
27
opens new avenues for sensing and quantitative analysis. There is a large body of literature related to their
28
synthesis, with a relatively small number of methods reporting the analysis of M(N)Ps using separation
29
methods, which provide information on their purity and monodispersity. This review discusses analytical
30
separation methods of M(N)Ps published between 2013 and June 2018. The analytical separation methods
31
evaluated in this work include (i) field flow fractionation, (ii) capillary electrophoresis, (iii) macroscale
32
magnetophoresis and (iv) microchip magnetophoresis. Among the trends in analytical separations of
33
M(N)Ps an inclination towards miniaturization is moving from conventional benchtop methods to rapid and
34
low-cost methods based on microfluidic devices.
35
1 Introduction……….…4
37
2 Separations of magnetic (nano)particles……….5
38
2.1 Field flow fractionation………5
39
2.1.1 Magnetic field flow fractionation……….…5
40
2.1.1.1 Magnetic quadrupole field flow fractionation……….6
41
2.1.2 Asymmetrical flow field flow fractionation………8
42
2.1.3 Cyclical electrical field flow fractionation………8
43
2.2 Capillary electrophoresis………9
44
2.3 Macroscale magnetophoresis………...……….…………..……….10
45
2.3.1 High gradient magnetic separation……….………10
46
2.3.2 Low gradient magnetic separation…….……….11
47
2.4 Microchip magnetophoresis……….12
48
3 Conclusion and outlook……….………18
49
4 Acknowledgements……….18
50
5 References……….………19
51
4 52
1 Introduction
53
Magnetic (nano)particles (M(N)Ps) offer the unique advantage of being manipulated (moved or
54
held in place) using permanent magnets or electromagnets, a significant reason behind their popularity,
55
which grew rapidly in the past decades [1-3]. As an example, one of the most routinely used methods
56
exploiting MPs is magnetic sorting of cell populations from biological suspensions [4]. This method is now
57
standardized for tissue engineering and medical analysis.
58
Magnetic nanoparticles (MNPs) exhibit physical properties that differ remarkably from those of
59
the bulk ferromagnetic material due to finite size effects such as high surface-to-volume ratio, and a special
60
magnetic property at diameters typically lower than 20 nm called superparamagnetism [5]. At such small
61
size, MNPs do not exhibit multiple magnetic domains like ferromagnetic particles, but instead a single
62
domain. Therefore, under an external magnetic field, the magnetic moment of single domain nanoparticles
63
quickly aligns with the applied field, but in its absence, they exhibit no net magnetisation due to the rapid
64
reversal of their magnetic moment. It makes superparamagnetic nanoparticles especially suitable when
65
looking for fast responses to external magnetic fields without agglomeration effects [6]. For this reason,
66
superparamagnetic nanoparticles have been extensively pursued for a vast variety of biomedical
67
applications, including biosensing [7], bioanalysis [8], drug delivery [9], magnetic resonance imaging (MRI)
68
[10], and hyperthermia treatment of tumours [11].
69
The unique behavior and increasing applications of M(N)Ps have stimulated the advancement of
70
new synthesis methods. The core of M(N)Ps can be made of a wide range of magnetic materials such as
71
nickel, cobalt, iron and iron oxides. Iron oxides and their corresponding ferrites are the most commonly
72
used due to their high magnetic moments, biological compatibility, simple synthesis and low cost of
73
production. However, bare iron oxide nanoparticles are only stable in low ionic strength solutions at pH
74
values above (pH 9 - 12) or below (pH 2 - 5) their point zero charge. To prevent aggregation and increase
75
selectivity, the magnetic cores are usually coated with inorganic materials [12], polymers [13-16] and/or
76
functionalised with organic and biological molecules [1, 17]. There is a large quantity of literature exploiting
77
5
the synthesis and surface engineering of M(N)Ps for many purposes. Compared to this large output, the78
body of reports on separation approaches used for the analysis of M(N)Ps is considerably smaller, but still
79
very significant. A search in Elsevier’s database Scopus shows that only ca. 12% of the total publications on
80
M(N)Ps address analytical separation techniques. Yet, the separation and analysis of M(N)Ps is critically
81
important to obtain information on their size, shape and chemistry surface, enabling their practical use for
82
many applications.
83
In 2012, Stephens et al. [18] reviewed 58 papers describing separation of M(N)Ps by means of
84
applied magnetic fields and field gradients for improved purification and analysis [18]. The main goal of this
85
review is to pinpoint separation techniques of M(N)Ps for the period between 2013 and June 2018, by
86
employing three distinct types of field-flow fractionation (FFF) (magnetic FFF, asymmetrical FFF and cyclical
87
electrical FFF), capillary electrophoresis (CE), macroscale magnetophoresis (high/low gradient magnetic
88
separation), and microchip magnetophoresis. Analytical separation and sample preparation approaches
89
using M(N)Ps are deemed outside the scope of our review, for which there is a large body of literature,
90
including recent comprehensive reviews [1-3, 19-23]. All the studies discussed and critically analyzed are
91
summarized in table 1 in terms of particle composition and size, magnetic field applied, separation principle,
92
separation time and complexity of the infrastructures used.
93 94
2 Separations of magnetic (nano)particles
95
2.1 Field flow fractionation
96
FFF is a separation technique that uses an external field applied perpendicular to the direction of flow
97
causing differential migration of M(N)Ps. Typically, the flow profile in a FFF channel is laminar, so particles
98
which interact more strongly with the field are found closer to the channel walls and will move more slowly
99
due to slower flow streams. Analytes can be separated by different mechanisms of FFF according to the
100
type of the field applied. Typical fields include centrifugal and gravitational forces, cross flow of solvent,
101
and thermal, electrical and magnetic gradients [24].
102
103
6
2.1.1 Magnetic field flow fractionation
104
Magnetic field flow fractionation (MFFF) has been shown to be an effective method for the
105
separation of polydisperse suspensions of M(N)Ps when an external magnetic field is applied along a flowing
106
channel. Rogers et al. [25] used MATLAB to simulate the separation of fluidMAG-D (starch-coated magnetite
107
(Fe3O4)) M(N)Ps of sizes between 50 and 400 nm by simulating particle trajectories and magnetic forces.
108
The results obtained from the simulation showed that M(N)Ps within the size range of interest could be
109
separated and collected in a size dependent manner in fraction 1 (smaller sized) and fraction 2 (larger sized).
110
To validate this model, the simulated conditions were replicated experimentally. However, the theoretical
111
and experimental results did not agree. This inconsistency could be due to the fact that particle-particle
112
interactions are not taken into consideration into the model. Due to the failure of the initial experiments,
113
the same authors changed the approach to a simple magnetic coil setup composed of a tubing wrapped
114
around a Grade N42 diametrically magnetized neodymium cylinder [25]. An inlet for both the M(N)Ps
115
suspension and the mobile phase was inserted at the top of the magnetic coil and a single outlet at the
116
bottom was used for the collection of magnetic particle fractions. The tubing was filled with M(N)Ps
117
suspension. As soon as a steady state level of accumulation of M(N)Ps across the inner wall of the tubing
118
was achieved, an initial flow rate of 0.25 mL/min was applied to wash out the M(N)Ps remaining suspended.
119
Then, the flow rate was increased up to 50 mL/min. DLS measurements and TEM showed that the particles
120
collected at lower flow rates were smaller than particles collected at higher flow rates. This approach was
121
low cost and allowed the separation of polydisperse M(N)Ps by simply controlling the flow rate. However,
122
broad size distributions were obtained. Thus, further optimisation of the system is crucial to allow for
123
specific applications such as in biomedicine.
124 125
2.1.1.1 Magnetic quadrupole field flow fractionation
126
The first prototype of a magnetic quadrupole field flow fractionation (MQFFF) was developed and
127
evaluated by Zborowski et al. [26] for continuous separation of human peripherical lymphocytes labeled
128
with magnetic colloids. It consisted of a quadrupole electromagnet assembly of four steel pole tips with two
129
7
of them opposed the magnetic north poles and the other two opposed the magnetic south poles. The130
electromagnet assembly was radially symmetric. The steel was magnetized by an electric current in the coils
131
wrapped around the poles. This configuration creates a magnetic field whose magnitude increases linearly
132
with the radial distance from the axis. This methodology is well described by Carpino et al. [27]. The results
133
showed that the separation process was close to the predicted behavior of an ideal quadrupole magnetic
134
field [26]. Later on, Orita et al. [28] developed a simple on-off field MQFFF to separate and quantify two
135
distinct sub micrometer commercial M(N)Ps (90 and 200 nm) at specific magnetic field and flow conditions
136
[28]. This on-off field MQFFF system was inspired by the system previously developed by Zborowski et al.
137
[26] . It consisted of a separation channel volume of 0.94 mL fitted into a stainless-steel cylinder that was
138
implemented in a flow injection setup with downstream optical detection (Figure 1). The fractograms
139
exhibited improved retention (98.6% vs. 53.3%) for the larger M(N)Ps (200 nm vs.90 nm) at higher flow
140
rates (0.05 mL/min vs. 0.01 mL/min) [28]. Thus, for given field and flow conditions, the on-off field MQFFF
141
system can be used for the quantification of retained and unretained fractions. This is useful for the
142
separation of unwanted weakly magnetic particulate contaminants from M(N)P suspensions. Compared to
143
the magnetic coil setup previously described, the on-off field MQFFF system requires less handling.
144 145
146
Figure 1 – Schematic of the MQFFF system. The mobile phase was driven by a pump. The sample is
147
introduced through a separate port. The flow of the mobile phase pushes the sample from the injector into
148
8
the separation channel fitted into a quadrupole electromagnet connected to a UV-visible detector.149
Reprinted from [28] with permission.
150 151
Moore et al. [29] used MQFFF for red blood cell (RBC, with mean diameter of 8 µm) separation as
152
an alternative to centrifugal separation. A quadrupole field was designed having a maximum field of 1.68 T
153
at the magnet pole tips, zero field at the aperture axis, and a nearly constant radial field gradient of 1.75 T
154
mm-1 inside a cylindrical aperture. A light-scattering detector downstream of the magnet measured light
155
attenuation caused by the cells eluting from the magnet as a function of time. The cell samples were
156
composed of high spin RBC (obtained by chemical conversion of hemoglobin to methemoglobin - met RBC
157
- or exposure to anoxic conditions - deoxy RBC), low spin RBC (obtained by exposure to ambient air – oxy
158
RBC), and mixtures of deoxy RBC and white blood cells (WBC). Cell tracking velocimetry was used to
159
measure the magnetophoretic mobility of the RBC and the results showed that the mobility depended on
160
the presence of high-spin hemoglobin. Only high spin RBC were attracted by the magnet, while low-spin
161
RBC demonstrated magnetic susceptibility comparable to WBC. It was also found that RBC did not elute
162
within 15 min from the channel at flow rate ≤ 0.05 mL/min but as would be expected rapidly eluted at a
163
higher flow rate of 2.0 mL/min. These results agreed with earlier studies on the magnetic properties of
164
hemoglobin using other techniques [30, 31]. The fractionation experiments of RBC and a RBC/WBC mixture
165
showed that a 5 x 107/mL cell suspension pumped at 0.1 mL/min through a magnetic field of 1.5T and
166
gradient of 1,000 T m-1 is depleted to less than 5% of the initial RBC number concentration. The 5% residual
167
contamination was comparable to that typically seen in WBC obtained by blood centrifugation. One
168
advantage over blood centrifugation, is that MQFFF RBC separation can be scaled to microliter devices for
169
RBC debulking, which can be portable and operated immediately after donation with minimal human labor.
170 171
2.1.2 Asymmetrical flow field-flow fractionation
172
Asymmetrical flow field flow fractionation (AF4) is a separation technique based on the theory of
173
FFF. The cross flow is induced by flowing liquid constantly exiting through a semi-permeable wall on the
174
9
bottom of the channel. The lower size M(N)Ps, which can be fractioned, are restricted by the molecular175
weight cut off membrane. The suitability of AF4 has been shown for the fractionation of magneto polyplexes
176
(with mean diameter of 54 nm) [32] and carboxydextran-coated maghemite dispersions (with diameter of
177
6 – 60 nm) [33] by connecting the AF4 instrument to UV [33] and multi-angle laser light scattering (MALLS)
178
[32, 33] detectors. AF4 can be a simple, fast and reliable tool for quality control in commercial production
179
of M(N)Ps, while providing complementary information related to nonmagnetic sample components.
180 181
2.1.3 Cyclical electrical field flow fractionation
182
Cyclical electrical field flow fractionation (CyEFFF) consists of an oscillating square voltage applied
183
between a top and bottom electrode inside the channel. As result, M(N)Ps move back and forth between
184
the electrodes in agreement with their sizes and electrophoretic mobilities. M(N)Ps with high
185
electrophoretic mobilities move further into the center of the channel and they spend more time at the
186
faster fluid regions thus eluting earlier than the lower mobility M(N)Ps. One of the limitations of this
187
technique is the band broadening of the resulting UV fractograms and low resolution. To address and solve
188
the diffusion issue, Tasci et al. [34] reported the separation of MNPs by CyEFFF applying square wave
189
voltages with higher duty cycles instead of DC offset voltages (Figure 2). Thus, particle diffusion was
190
suppressed, which allowed separations of MNPs with mean diameter of 50 and 100 nm. This study
191
demonstrated the capability of CyEFFF for size and electrophoretic analysis of lipid and polystyrene
192
sulfonate-coated MNPs [34].
193
194
Figure 2 – Schematic of the CyEFFF system. The dashed line shows the particle trajectory that results from
195
the cyclical electrical field. Reprinted from [34] with permission.
196
10
2.2 Capillary electrophoresis
197
CE is a powerful separation method which has the advantages of minimal requirement of sample and
198
buffer volumes, and lack of generation of organic waste. Further, the use of narrow capillaries in CE with
199
high electrical resistance, allows the application of high electrical fields with minimal heat generation. The
200
use of high electrical fields together with the conventional plug-type flow from electrically driven systems
201
results in short analysis times and high efficiency and resolution for almost any type of ionic analytes. Yet,
202
a remarkable limitation of bare iron oxide M(N)P separations by CE that has been previously reported [35-
203
38] is their high tendency to spontaneously agglomerate to minimize surface energies, which is observed in
204
electropherograms as spurious spikes that in turn prevent the accurate determination of the
205
electrophoretic mobilities of M(N)Ps. This limitation has been recently overcome by Alves et al. [39], who
206
achieved symmetrical and smooth peaks of bare iron oxide nanoparticles. This was accomplished through
207
electrostatic stabilisation using complexing electrolyte anions such as citrate and phosphate, and the
208
additive tetramethylammonium hydroxide (TMAOH) within the background electrolyte (BGE), an ionic
209
solution of desired concentration, co-ion and counter-ion mobilities, and usually also providing pH-buffering
210
capacity. TMAOH is a peptizing agent (an electrolyte that converts aggregated particles into a colloidal sol)
211
[40] used for more than two decades in the synthesis of well-dispersed iron oxide M(N)P solutions, however
212
never utilised for effective CE separations of M(N)Ps. The same study also showed the successful separation
213
of bare (with diameter between 7 and 13 nm) and carboxylated (10 nm) iron oxide nanoparticles in 12 min
214
using Tris-nitrate containing 20 mM TMAOH as BGE. The electrophoretic mobilities for bare and
215
carboxylated iron oxide nanoparticles were 3.3E-08 m2 V-1 s-1 (0.9 %RSD) and 4.1E-08 m2 V-1 s-1 (0.4 %RSD),
216
respectively. These findings demonstrate that simple and rapid CE experiments are excellent tools to
217
characterise and monitor properties and interactions of iron oxide nanoparticles with other molecules for
218
potential surface modification purposes [39]. Baron et al. [41] studied the online stacking of carboxylated
219
core-shell magnetite nanoparticles in CE. By monitoring the ionic strength of the BGE and the sample zone,
220
it was observed that stacking occurred optimally when MNPs were dispersed in 10 mM borate/NaOH (pH
221
9.5) and injected to the BGE composed of 100 mM borate/NaOH (pH 9.5). The decrease of the electric
222
11
double layer thickness with increasing ionic strength could induce MNP aggregation and led to the223
restructuring of the MNPs zone due to the decrease of distance between nanoparticles [41]. The Derjaguin-
224
Landau-Verwey-Overbeek (DLVO) theory, which describes van-der-Waals and electrostatic interactions
225
between charged surfaces within a liquid medium [42], was suggested as a cause of peak sharpening in CE.
226 227
2.3 Macroscale magnetophoresis
228
Magnetophoresis refers to the motion of magnetic particles or magnetizable material through a
229
fluid under the influence of a magnetic field [43]. For almost all the M(N)Ps applications, manipulation,
230
recovery, and collection rates using external magnets should be done quickly. Rapid magnetophoretic
231
separation can be attained under both high gradient (HGMS, ∇B⃗ > 1000 T m-1) and low gradient magnetic
232
separation (LGMS, ∇B⃗ < 100 T m-1).
233 234
2.3.1 High gradient magnetic separation
235
HGMS is commonly employed in conventional industry practice to separate magnetic materials from
236
non-magnetic aqueous solutions, such as for wastewater treatment of bacteria and solids. Typically, HGMS
237
is used to separate microscale or bigger particles, or microscale aggregates of nanoparticles, or
238
nanoparticles encapsulated in larger polymer beads. However, the application of HGMS to suspensions of
239
individually dispersed M(N)Ps has been poorly explored so far. HGMS systems generally consist of a column
240
packed with magnetically susceptible wires placed inside an electromagnet. Through application of a
241
magnetic field across the column, the wires dehomogenise the magnetic field in the column producing high
242
field gradients around the wires to enable the capture of M(N)Ps onto their surfaces. The attraction of
243
M(N)Ps depends on the magnetic field gradients generated, particle size and magnetic properties [44]. A
244
study conducted by Mirshahghassemi et al. [45] describes the application of HGMS for oil remediation using
245
polyvinylpyrrolidone (PVP)-coated MPs (mean size diameter of 127 nm) in a continuous and large volume
246
flow system. This technique was analyzed as a function of magnetic field strength, mixing time and stainless-
247
12
steel wool content. Fluorescence and inductively coupled plasma-optical emission spectrometer (ICP-OES)248
data indicated that ca. 85% of oil and 95% of MNP were eliminated. The continuous use of this HGMS system
249
over 7 hours allowed the treatment of 17 liter oil water mixture with no reduction of the oil and MPs
250
removal capacity [45]. Although this study introduces a new application of HGMS for oil remediation, it has
251
the disadvantages of being tedious and time-consuming.
252 253
2.3.2 Low gradient magnetic separation
254
In contrast to conventional practice where HGMS is normally employed, LGMS is still poorly explored
255
and understood. Toh et al. [46, 47] showed the reliability of LGMS for magnetophoretic separation of
256
microalgal biomass that interacted electrostatically with cationic polymer functionalized MNPs [46, 47].
257
Poly (diallyl dimethylammonium chloride) (PDDA) and chitosan (Chi) (with mean diameter of 50 nm) worked
258
as binding agents to promote rapid separation of the negatively charged Chlorella sp. through LGMS at field
259
gradient lower than 80 T m-1. The obtained results indicated cell separation efficiency of about 98% for
260
PDDA and 99% for Chi. Though, from a practical point of view, PDDA was preferable as polymer binder since
261
the attachment mechanism involved was pH independent [47]. Because almost all the magnetophoretic
262
studies have been dedicated to the behavior of spherical MNPs, and poor attention has been paid to rod-
263
like MNPs, Lim et al. [48] compared the magnetophoretic behavior of spherical and rod-like iron oxide
264
nanoparticles under LGMS. Both effects of particle concentration and magnetic field gradient on the
265
separation kinetics were evaluated. It was shown that at low particle concentration, the magnetophoresis
266
of MNPs at low magnetic gradient is significantly enhanced by particle anisotropy (non-spherical shape),
267
with rod-like MNPs taking significantly less time than spherical MNPs to be separated [48]. New approaches
268
for the separation of M(N)Ps according to their shape, size, and coatings, along with their unique magnetic
269
properties will open new opportunities for M(N)Ps.
270 271
2.4 Microchip magnetophoresis
272
13
The field of microfluidics is continuously evolving as miniaturized platforms provide quick analysis273
with high resolution at low cost, foster portability and make use of exceptionally minute amounts of
274
reagents. Zhang et al. [49] developed a microchip based on magnetophoresis with differential interference
275
contrast (DIC) detection (Figure 3A and 3B). The real-time moving trajectories and velocities of the MPs at
276
different magnetic field strengths (depending on the distance to the permanent magnet) were measured
277
based on consecutive DIC images. The results indicated that shorter distances to the magnet caused higher
278
magnetophoretic velocities of MPs, and enhanced magnetophoretic velocity differences between dissimilar
279
particle sizes (Figure 3D) [49]. This study allowed the successful separation and detection of a polydisperse
280
mixture of MPs (500 nm and 160 nm) at a single-particle level in only about 15 seconds (Figure 3C).
281
282
Figure 3 - Schematic diagram (A) and photography (B) of the experimental setup of the microchip
283
magnetophoresis. (C) Representative magnetopherograms of the MPs by microchip magnetophoresis with
284
the DIC detection system. (D) Magnetophoretic velocities of the MPs at different permanent magnet
285
distances obtained using a DIC microscope. Reprinted from [49] with permission.
286 287
The microfluidic separation of iron oxide beads (5 µm diameter) with soft magnetic
288
microstructures was demonstrated by Zhou et al. [50]. The fabrication process of the microfluidic device is
289
represented in Figure 4. This microfluidic device consisted of two channels - fluidic and structural – made
290
in polydimethylsiloxane (PDMS). The fluidic channel contained two inlets and two outlets. A mixture of iron
291
14
powder and PDMS was injected into the structural channel located between two external permanent292
magnets. Three microstructure shapes were studied: (i) half circle, (ii) 60o isosceles triangle and (iii) 120 o
293
isosceles triangle. The soft magnetic microstructures provided localized and strong magnetic forces on the
294
MPs that deflected them perpendicularly to the pressure-driven flow. Thus, the separation depended on
295
the magnetic forces. In turn, magnetic forces are affected by the shape of the iron-PDMS microstructures
296
and the mass ratio of the iron-PDMS composite. Also, the flow rate in the fluid channel affects the time that
297
MPs are subjected to the magnetic field, and consequently their vertical deflection. Numerical simulations
298
were developed to predict the particle trajectories showing good agreement with experimental data. Finally,
299
systematic experiments and simulations were conducted to study the effect of several relevant factors on
300
the separation of MPs: microstructure shape, mass ratio of the iron–PDMS, microfluidic channel width and
301
average flow velocity. The results demonstrated that (i) half circular iron–PDMS microstructure caused
302
greater deflections, (ii) larger mass ratio of the iron–PDMS composite provided higher magnetic forces, and
303
(iii) wider channels separate MPs less efficiently than narrow microfluidic channels when operating at the
304
same flow rate [50]. Based on the obtained results, enhanced separations of MPs can be achieved in a
305
compact, simple and low-cost microfluidic device.
306 307
308
15
Figure 4 - Fabrication process of the microfluidic device for efficient separation of magnetic particles based309
on deflection in flowing streams. Reprinted from[50] with permission.
310 311
Kumar and Rezai [51] introduced a novel hybrid technique called multiplex inertio-magnetic
312
fractionation (MIMF) to simultaneously fractionate up to four magnetic and non-magnetic particles in water
313
at a throughput of 106 – 109 particles per hour. The MIMF device was based on interactions between flow-
314
induced inertial forces and magnetic forces in an expansion microchannel containing an external permanent
315
magnet (Figure 5). The particle fractionation performance was first optimized in terms of flow rate and
316
aspect ratio of the channel and particle size on duplex MIMF to understand the behavior of the particles.
317
The obtained knowledge was then applied to demonstrate fourplex MIMF with three magnetic
318
monodisperse particles (5, 11 and 35 µm) and nonmagnetic particles (15 µm). The non-magnetic particles
319
inertially focus at the center of the channel, while magnetic particles get fractionated based on interaction
320
between inertial and magnetic forces and positioned in a size related manner in the device with smaller
321
particles located closer to the external magnet. The exit position for each particle type and size was
322
measured with respect to the expansion region baseline since the focus of this study was only to investigate
323
the concept of MIMF and not M(N)Ps sorting. In the future, outlets can be implemented based on the exit
324
positions calculated. This MIMF device addresses several disadvantages of currently available magnetic
325
fractionation devices such as low throughput, requirement of sheath flow and inability to fractionate
326
multiple targets simultaneously [51].
327
16 328
Figure 5 – MIMF scheme of the particle separation. The device (scale bar 25 mm) consisted of an inertio-
329
magnetic zone (IMZ) with a side permanent magnet and an expansion zone (EZ). The schematic
330
representation of MIMF device shows three red-colored magnetic particles (MP) of varied sizes and a black-
331
colored non-magnetic particle (NMP). Reprinted from [51] with permission.
332 333
Dutz et al. [52] studied the consequences of applying an external magnetic force to a suspension
334
of MPs with diameters of 2, 6 and 12 µm circulating in a spiral microfluidic channel (Figure 6). The fluid was
335
injected via an input port located near the center of the spiral and exits through a symmetric flow splitter
336
and two outlet ports. The exit ports were referred to as inner outlet and outer outlet, which collected the
337
inner and outer halves of the fluid stream, respectively. For that purpose, an array of permanent magnets
338
was arranged and accurately centered beneath the spiral to produce a magnetic field with octupolar
339
symmetry. At low flow rates (5 µL/min) it was observed that 6 µm MPs clustered along a streamline near
340
the outer wall of the spiral. At intermediate flow rates (30 µL/min), 6 µm MPs were homogeneously
341
distributed across the width of the channel. At high flow rates (60 µL/min), 6 µm MPs were focused in
342
clusters within the inner half of the spiral. The phenomenon observed at high flow rates was caused by
343
hydrodynamic drag forces that induced secondary (Dean) flow in the spiral microfluidic channel. A model
344
17
incorporating key forces involved in the spiral microchip was described and used to extract quantitative in345
situ information about the magnitude of local Dean drag forces from experimental data. The experimental
346
results also showed that at low flow rates (5 µL/min) all the 12 μm MPs and one third of the 2 μm MPs were
347
drawn toward the outer wall of the spiral and extracted from the outer outlet, whereas the remaining two
348
thirds of the 2 μm MPs were extracted from the inner outlet. Gradually more 6 and 12 μm MPs were
349
extracted from the inner outlet at higher flow rates. For example, all the 12 μm MPs were found to exit the
350
inner outlet at 40 µL/min. The behavior of the smallest MPs (2 μm) was opposite of the larger particles,
351
with less and less being extracted from the inner outlet as the flow rate increases. [52].
352
353
Figure 6 – Geometry of the microfluidic spiral. The fluid was injected via the input port (in) and exits through
354
the exit ports referred as inner outlet (io) and outer outlet (oo). Reprinted from [52] with permission.
355 356
The effective application of MNPs is highly dependent of appropriate cleaning after synthesis
357
and/or before their use to remove solvents, excess of surfactants, byproducts and undesired impurities.
358
Because manual cleaning is time consuming and inefficient, Cardoso et al. [53] designed, fabricated and
359
tested a microfluidic system for the continuous cleaning and separation of MNPs (average diameter of 10
360
nm) synthesized by coprecipitation using NH4OH as catalyst. First, a theoretical study was performed to
361
optimize the geometrical configuration of the microfluidic device and the experimental conditions. The
362
optimized microfluidic system was composed of two inlets and two outlets (Figure 7). The cleaning solution
363
(water, fluid A) was introduced through the inlet A and the synthesis solution with MNP (fluid B) through
364
the inlet B. The waste fluid (fluid C) exited through the outlet C, whereas the cleaned MNPs solution (fluid
365
18
D) exited though the outlet D. A permanent magnet was located near the diffusion channel to deflect the366
MNPs by magnetic forces from the synthesis solution to the cleaning solution (figure 7). Gas
367
chromatography was performed to indirectly calculate the cleaning efficiency by measuring the decrease
368
of the peak area of NH4OH. The results demonstrated a cleaning efficiency of about 99.7% by controlling
369
the fluid flows in the microfluidic system, whereas manual cleaning achieved a value of about 94.3% after
370
cleaning six consecutive times. Both processes are time-consuming, however the microfluidic system offers
371
negligible loss of MNPs and the process is performed autonomously [53].
372 373 374
375
Figure 7 – Schematic of the optimized microfluidic system. Fluid A: cleaning solution; Fluid B: synthesis
376
solution with MNPs; Fluid C: waste; Fluid D: cleaned MNPs. Channel widths (a) 600 µm; (b) 400 µm; (c) 600
377
µm; (d) 400 µm; diffusion channel length (e) 10 mm. Reprinted from [53] with permission.
378 379
The separation of magnetic particles with spherical (mean diameter of 7 µm) and elliptical shapes
380
was demonstrated by Zhou et al. [54] in a simple and effective manner. The microfluidic chip consisted of
381
two inlets and one outlet. The inlet 1 was injected with aqueous-glycerol solution that worked as buffer
382
flow, while the inlet 2 was injected with sample particles suspended in aqueous-glycerol solution. The
383
microfluidic device was placed in the center of a uniform magnetic field and mounted on an inverted
384
microscope to record the trajectories of the magnetic particles. A pressure-driven flow was combined with
385
the magnetic field applied perpendicularly to the flow direction. The results showed that the asymmetrical
386
rotation of the ellipsoidal MPs, together with the particle-wall hydrodynamic interactions, resulted in a net
387
19
lift force towards the channel center. Differently, spherical MPs remained closer to the channel wall. This388
uniform magnetic field technique can be applied to multiple microfluidic channels facilitating high
389
throughput parallelization for biological and biomedical applications that require separation of shaped MPs
390
[54].
391 392
Conclusion and outlook
393
The improvement of the existing approaches of synthetizing uniform and more monodisperse
394
M(N)Ps has been notorious in recent years. However, even the most efficient and highly optimized
395
protocols yield samples relatively polydisperse. This is an obstacle for some emerging applications of
396
M(N)Ps with some specific functions, particularly in biomedical areas, as their properties are dependent.
397
Analytical tools for M(N)Ps separation are fundamental to understand the behavior of M(N)Ps according to
398
their size, shape and surface chemistry. This knowledge can give information on the monodispersity and
399
purity of M(N)Ps for their ultimate practical use. Over the last 5 years, novel strategies for M(N)P
400
separations have been reported based on FFF, macroscale magnetophoresis and CE, but the trend is toward
401
integrating external magnetic fields onto single microfluidic structures. From about 33 journal articles that
402
have been published in the last 5 years, 54% of them are microfluidic based. These can be easily fabricated
403
and are inexpensive, not requiring any extra power source. Moreover, separations in microchip
404
magnetophoresis can be easily achieved with high efficiency and throughput in the order of seconds. Real-
405
time moving trajectories and velocities of M(N)Ps can also be monitored by means of microscope imaging
406
that is seen as the new trend in microfluidic separation and identification of M(N)Ps.
407
408
409
20
Acknowledgements
410
Mirek Macka gratefully acknowledges the Australian Research Council Future Fellowship (FT120100559).
411
Manuel Miró acknowledges financial support from the Spanish State Research Agency (AEI) through project
412
CTM2017-84763-C3-3-R (MINECO/AEI/FEDER, EU). Michael Breadmore acknowledges an Australian
413
Research Council Future Fellowship Award (FT130100101).
414
415
21
References
416
[1] Á. Ríos, M. Zougagh, Recent advances in magnetic nanomaterials for improving analytical
417
processes, TrAC, Trends Anal. Chem. 84 (2016) 72-83.
418
[2] T. Jamshaid, E.T.T. Neto, M.M. Eissa, N. Zine, M.H. Kunita, A.E. El-Salhi, A. Elaissari, Magnetic
419
particles: From preparation to lab-on-a-chip, biosensors, microsystems and microfluidics applications, TrAC,
420
Trends Anal. Chem. 79 (2016) 344-362.
421
[3] I. Vasconcelos, C. Fernandes, Magnetic solid phase extraction for determination of drugs in
422
biological matrices, TrAC, Trends Anal. Chem. 89 (2017) 41-52.
423
[4] S. Miltenyi, W. Müller, W. Weichel, A. Radbruch, High gradient magnetic cell separation with MACS,
424
Cytometry A 11 (1990) 231-238.
425
[5] S.A. Wahajuddin, Superparamagnetic iron oxide nanoparticles: magnetic nanoplatforms as drug
426
carriers, Int. J. Nanomedicine 7 (2012) 3445.
427
[6] S.R. Dave, X. Gao, Monodisperse magnetic nanoparticles for biodetection, imaging, and drug
428
delivery: a versatile and evolving technology, Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 1 (2009)
429
583-609.
430
[7] J.M. Perez, T. O'Loughin, F.J. Simeone, R. Weissleder, L. Josephson, DNA-based magnetic
431
nanoparticle assembly acts as a magnetic relaxation nanoswitch allowing screening of DNA-cleaving agents,
432
J. Am. Chem. Soc. 124 (2002) 2856-2857.
433
[8] J.E. Smith, L. Wang, W. Tan, Bioconjugated silica-coated nanoparticles for bioseparation and
434
bioanalysis, TrAC, Trends Anal. Chem. 25 (2006) 848-855.
435
[9] N. Kohler, C. Sun, J. Wang, M. Zhang, Methotrexate-modified superparamagnetic nanoparticles
436
and their intracellular uptake into human cancer cells, Langmuir 21 (2005) 8858-8864.
437
[10] B. Chertok, B.A. Moffat, A.E. David, F. Yu, C. Bergemann, B.D. Ross, V.C. Yang, Iron oxide
438
nanoparticles as a drug delivery vehicle for MRI monitored magnetic targeting of brain tumors, Biomaterials
439
29 (2008) 487-496.
440
22
[11] K. Maier-Hauff, F. Ulrich, D. Nestler, H. Niehoff, P. Wust, B. Thiesen, H. Orawa, V. Budach, A. Jordan,441
Efficacy and safety of intratumoral thermotherapy using magnetic iron-oxide nanoparticles combined with
442
external beam radiotherapy on patients with recurrent glioblastoma multiforme, J. Neuro-Oncol. 103 (2011)
443
317-324.
444
[12] V. Salgueiriño‐Maceira, M.A. Correa‐Duarte, M. Spasova, L.M. Liz‐Marzán, M. Farle, Composite
445
silica spheres with magnetic and luminescent functionalities, Adv. Funct. Mater. 16 (2006) 509-514.
446
[13] G.S. Demirer, A.C. Okur, S. Kizilel, Synthesis and design of biologically inspired biocompatible iron
447
oxide nanoparticles for biomedical applications, J. Mater. Chem. B 3 (2015) 7831-7849.
448
[14] J. Chomoucka, J. Drbohlavova, D. Huska, V. Adam, R. Kizek, J. Hubalek, Magnetic nanoparticles and
449
targeted drug delivering, Pharmacol. Res. 62 (2010) 144-149.
450
[15] A.K. Gupta, M. Gupta, Synthesis and surface engineering of iron oxide nanoparticles for biomedical
451
applications, Biomaterials 26 (2005) 3995-4021.
452
[16] D. Singh, J.M. McMillan, X.-M. Liu, H.M. Vishwasrao, A.V. Kabanov, M. Sokolsky-Papkov, H.E.
453
Gendelman, Formulation design facilitates magnetic nanoparticle delivery to diseased cells and tissues,
454
Nanomedicine 9 (2014) 469-485.
455
[17] W. Wu, Q. He, C. Jiang, Magnetic iron oxide nanoparticles: synthesis and surface functionalization
456
strategies, Nanoscale Res. Lett. 3 (2008) 397.
457
[18] J.R. Stephens, J.S. Beveridge, M.E. Williams, Analytical methods for separating and isolating
458
magnetic nanoparticles, Phys. Chem. Chem. Phys. 14 (2012) 3280-3289.
459
[19] V. Tolmacheva, V. Apyari, E. Kochuk, S. Dmitrienko, Magnetic adsorbents based on iron oxide
460
nanoparticles for the extraction and preconcentration of organic compounds, J. Anal. Chem. 71 (2016) 321-
461
338.
462
[20] Y. Wang, Q. Chen, C. Gan, B. Yan, Y. Han, J. Lin, A review on magnetophoretic immunoseparation,
463
J. Nanosci. Nanotechnol. 16 (2016) 2152-2163.
464
[21] A.A. Hernandez-Hernandez, G.A. Alvarez-Romero, E. Contreras-Lopez, K. Aguilar-Arteaga, A.
465
Castaneda-Ovando, Food Analysis by Microextraction Methods Based on the Use of Magnetic Nanoparticles
466
as Supports: Recent Advances, Food Anal. Methods 10 (2017) 2974-2993.
467
23
[22] S. Piovesana, A. L. Capriotti, Magnetic materials for the selective analysis of peptide and protein468
biomarkers, Curr. Med. Chem. 24 (2017) 438-453.
469
[23] T. Tangchaikeeree, D. Polpanich, A. Elaissari, K. Jangpatarapongsa, Magnetic particles for in vitro
470
molecular diagnosis: From sample preparation to integration into microsystems, Colloids Surf. B 158 (2017)
471
1-8.
472
[24] J.C. Giddings, F. Yang, M.N. Myers, Flow-field-flow fractionation: a versatile new separation
473
method, Science 193 (1976) 1244-1245.
474
[25] H.B. Rogers, T. Anani, Y.S. Choi, R.J. Beyers, A.E. David, Exploiting size-dependent drag and
475
magnetic forces for size-specific separation of magnetic nanoparticles, Int. J. Mol. Sci. 16 (2015) 20001-
476
20019.
477
[26] M. Zborowski, L. Sun, L.R. Moore, P.S. Williams, J.J. Chalmers, Continuous cell separation using
478
novel magnetic quadrupole flow sorter, J. Magn. Magn. Mater. 194 (1999) 224-230.
479
[27] F. Carpino, L.R. Moore, J.J. Chalmers, M. Zborowski, P.S. Williams, Quadrupole magnetic field-flow
480
fractionation for the analysis of magnetic nanoparticles, IOP Publishing. 2005, p. 174.
481
[28] T. Orita, L.R. Moore, P. Joshi, M. Tomita, T. Horiuchi, M. Zborowski, A quantitative determination
482
of magnetic nanoparticle separation using on-off field operation of quadrupole magnetic field-flow
483
fractionation (QMgFFF), Anal. Sci. 29 (2013) 761-764.
484
[29] L.R. Moore, P.S. Williams, F. Nehl, K. Abe, J.J. Chalmers, M. Zborowski, Feasibility study of red blood
485
cell debulking by magnetic field-flow fractionation with step-programmed flow, Anal. Bioanal. Chem. 406
486
(2014) 1661-1670.
487
[30] L. Pauling, C.D. Coryell, The magnetic properties and structure of hemoglobin, oxyhemoglobin and
488
carbonmonoxyhemoglobin, Proc. Natl Acad. Sci. U.S.A 22 (1936) 210-216.
489
[31] C.D. Coryell, F. Stitt, L. Pauling, The magnetic properties and structure of ferrihemoglobin
490
(methemoglobin) and some of its compounds, J. Am. Chem. Soc. 59 (1937) 633-642.
491
[32] E. Wetterskog, A. Castro, L. Zeng, S. Petronis, D. Heinke, E. Olsson, L. Nilsson, N. Gehrke, P.
492
Svedlindh, Size and property bimodality in magnetic nanoparticle dispersions: single domain particles vs.
493
strongly coupled nanoclusters, Nanoscale 9 (2017) 4227-4235.
494
24
[33] E. Haladjova, S. Rangelov, M. Geisler, S. Boye, A. Lederer, G. Mountrichas, S. Pispas, Asymmetric495
Flow Field‐Flow Fractionation Investigation of Magnetopolyplexes, Macromol. Chem. Phys. 216 (2015)
496
1862-1867.
497
[34] T. Tasci, E. Manangon, D. Fernandez, W. Johnson, B. Gale, Separation of magnetic nanoparticles by
498
cyclical electrical field flow fractionation, IEEE Trans. Magn. 49 (2013) 331-335.
499
[35] G.R. Ducatte, N.E. Ballou, C. Quang, S.L. Petersen, Separation and characterization of oxide
500
particles by capillary electrophoresis, J. Microcolumn Sep. 8 (1996) 403-412.
501
[36] C. Quang, S. Petersen, G. Ducatte, N. Ballou, Characterization and separation of inorganic fine
502
particles by capillary electrophoresis with an indifferent electrolyte system, J. Chromatogr. A 732 (1996)
503
377-384.
504
[37] S.L. Petersen, N.E. Ballou, Separation of micrometer-size oxide particles by capillary zone
505
electrophoresis, J. Chromatogr. A 834 (1999) 445-452.
506
[38] N.G. Vanifatova, B.Y. Spivakov, J. Mattusch, U. Franck, R. Wennrich, Investigation of iron oxide
507
nanoparticles by capillary zone electrophoresis, Talanta 66 (2005) 605-610.
508
[39] M.N. Alves, P.N. Nesterenko, B. Paull, P.R. Haddad, M. Macka, Separation of superparamagnetic
509
magnetite nanoparticles by capillary zone electrophoresis using non‐complexing and complexing
510
electrolyte anions and tetramethylammonium as dispersing additive, Electrophoresis (2018).
511
[40] F. Mérida, A. Chiu-Lam, A.C. Bohórquez, L. Maldonado-Camargo, M.-E. Pérez, L. Pericchi, M. Torres-
512
Lugo, C. Rinaldi, Optimization of synthesis and peptization steps to obtain iron oxide nanoparticles with high
513
energy dissipation rates, J. Magn. Magn. Mater. 394 (2015) 361-371.
514
[41] D. Baron, P. Dolanská, Z. Medříková, R. Zbořil, J. Petr, On‐line stacking of carboxylated magnetite
515
core–shell nanoparticles in capillary electrophoresis, J. Sep. Sci. (2017).
516
[42] M. Boström, V. Deniz, G. Franks, B. Ninham, Extended DLVO theory: electrostatic and non-
517
electrostatic forces in oxide suspensions, Adv. Colloid Interface Sci. 123 (2006) 5-15.
518
[43] M. Zborowski, J.J. Chalmers, Magnetophoresis: fundamentals and applications, Wiley Encyclopedia
519
of Electrical and Electronics Engineering (1999) 1-23.
520
25
[44] G.D. Moeser, K.A. Roach, W.H. Green, T. Alan Hatton, P.E. Laibinis, High‐gradient magnetic521
separation of coated magnetic nanoparticles, AlChE J. 50 (2004) 2835-2848.
522
[45] S. Mirshahghassemi, A.D. Ebner, B. Cai, J.R. Lead, Application of high gradient magnetic separation
523
for oil remediation using polymer-coated magnetic nanoparticles, Sep. Purif. Technol. 179 (2017) 328-334.
524
[46] P.Y. Toh, B.W. Ng, C.H. Chong, A.L. Ahmad, J.-W. Yang, C.J.C. Derek, J. Lim, Magnetophoretic
525
separation of microalgae: the role of nanoparticles and polymer binder in harvesting biofuel, RSC Advances
526
4 (2014) 4114-4121.
527
[47] P.Y. Toh, B.W. Ng, A.L. Ahmad, D.C.J. Chieh, J. Lim, Magnetophoretic separation of Chlorella sp.:
528
role of cationic polymer binder, Process Saf. Environ. 92 (2014) 515-521.
529
[48] J. Lim, S.P. Yeap, C.H. Leow, P.Y. Toh, S.C. Low, Magnetophoresis of iron oxide nanoparticles at low
530
field gradient: the role of shape anisotropy, J. Colloid Interface Sci. 421 (2014) 170-177.
531
[49] P. Zhang, S. Park, S.H. Kang, Size-dependent magnetophoresis of native single super-paramagnetic
532
nanoparticles in a microchip, Chem. Commun. 49 (2013) 7298-7300.
533
[50] R. Zhou, C. Wang, Microfluidic separation of magnetic particles with soft magnetic microstructures,
534
Microfluid. Nanofluidics 20 (2016) 48.
535
[51] V. Kumar, P. Rezai, Multiplex Inertio-Magnetic Fractionation (MIMF) of magnetic and non-
536
magnetic microparticles in a microfluidic device, Microfluid. Nanofluidics 21 (2017) 83.
537
[52] S. Dutz, M. Hayden, U. Häfeli, Fractionation of magnetic microspheres in a microfluidic spiral:
538
Interplay between magnetic and hydrodynamic forces, PLoS One 12 (2017) e0169919.
539
[53] V. Cardoso, D. Miranda, G. Botelho, G. Minas, S. Lanceros-Méndez, Highly effective clean-up of
540
magnetic nanoparticles using microfluidic technology, Sens. Actuators B Chem. 255 (2018) 2384-2391.
541
[54] R. Zhou, F. Bai, C. Wang, Magnetic separation of microparticles by shape, Lab Chip 17 (2017) 401-
542
406.
543
544
26
Table 1 – Particle composition and size, magnetic field applied, separation principle, separation time and complexity of the infrastructure used for M(N)Ps and545
magnetically susceptible RBCs between 2013 and 2018.
546
Particle composition Particle size (nm) Magnetic field applied
Separation principle
Separation time
Complexity of the infrastructure Ref
Starch-coated magnetite (nano)particles
50–400 51 mm length
Grade N42 diametrically magnetized NdFeB cylinder
MFFF <1 hour Basic laboratory equipment [25]
Dextran-coated magnetite nano(particles)
90 and 200 Quadrupole electromagnet
MQFFF 50 min Stainless-steel cylinder within a quadrupole electromagnet implemented into a flow injection setup with downstream optical detection
[28]
RBCs 8000 Quadrupole
magnet
MQFFF 25 min Cylindrical flow channel centred inside of a quadrupole magnet with downstream light scattering detection
[29]
Carboxydextran-coated maghemite nanoparticles
6 – 60 n.a. AF4 15 min AF4 instrument connected to
MALLS detection
[32]
Hybrid polymer magnetic micelles
54 n.a. AF4 15 min AF4 instrument connected to UV
and MALLS detection
[33]
Lipid and polystyrene sulfonate-coated magnetite nanoparticles
50 and 100 n.a. CyEFFF 30 min HPLC pump connected to an EFFF
channel with downstream UV detection; ac and dc voltages induced by a signal generator and a dc power supply
[34]
Polyvinylpyrrolidone (PVP)- coated magnetic particles
127 0.56 T permanent
magnetic assembly consisting of two 2x 4 x 0.5 inch
HGMS 1 hour HGMS instrument [45]
27
NdFeB blockswitha minimum gap of 5/8 inch
Poly (diallyl
dimethylammonium chloride) (PDDA) and chitosan (Chi)-coated magnetic nanoparticles
50 NdFeB permanent
magnet
LGMS 6 min Basic laboratory equipment [46]
Poly(diallyldimethylamonium chloride) (PDDA)-coated iron oxide nanoparticles
50 nm (spherical) and 20 x 300 nm (rod-like)
Cylindrical shaped N50-graded NdBFe (1.20 T) and Alnico permanent magnet (1.45 T) with 14 mm in diameter and 15 mm in length
LGMS 6 hours Basic laboratory equipment [48]
Bare and carboxylated iron oxide nanoparticles
7 - 13 (bare iron oxide
nanoparticles) and 10 (carboxylated iron oxide nanoparticles)
n.a. CE 12 min CE instrument [39]
Carboxylated iron oxide nanoparticles
75 n.a. CE 5 min CE instrument [41]
Polydisperse magnetic particles
150 and 500 Permanent NbFeB magnet (6 mm length, 4 mm width, and 3 mm thickness)
Microchip magnetophoresis
15 sec Microchip fabricated in PDMS with a side permanent magnet, a Gaussmeter, and DIC detection
[49]
Iron oxide magnetic beads 5000 Soft magnetic microstructures made of a mixture of iron powder and PDMS into a
Microchip magnetophoresis
<2 sec Microchip fabricated in PDMS mounted in an inverted microscope connected to a high-speed camera, placed in the centre of parallel permanent magnets
[50]
28
prefabricatedchannel Polystyrene (5000 and 11000
nm) and polyethylene (35000 nm)
magnetic beads
5000, 11000, and 35000
Permanent NbFeB N42 grade cuboid magnet
Microchip magnetophoresis
15 min Microchip fabricated in PDMS with a side permanent magnet mounted in an inverted microscope
connected to a high-speed camera [51]
Microspheres composed of styrene-maleic acid copolymer matrix
encapsulating 50% by mass magnetite cores
2000, 6000 and 12000
Octupolar array of permanent magnets
Microchip magnetophoresis
10 sec Microchip fabricated in PDMS with a spiral channel centred with respect to the octupolar magnetic array
[52]
Magnetite nanoparticles 10 Permanent NbFeB
magnet
Microchip magnetophoresis
>1 hour Microchip fabricated in PDMS with permanent magnet mounted in an inverted microscope connected to a high-speed camera
[53]
Magnetite-doped and uncross-linked polystyrene particles with spherical and elliptical shapes
7000 Halbach array Microchip
magnetophoresis
<2 sec Microchip fabricated in PDMS placed in the center of the Halbach array mounted in an inverted microscope connected to a high- speed camera
[54]
AF4: Asymmetrical field flow fractionation; CE: Capillary electrophoresis; CyEFFF: Cyclical electrical field flow fractionation; HGMS: High gradient magnetic
547
separation; LGMS: Low gradient magnetic separation; MALLS: Multi-angle laser light scattering; MFFF: Magnetic field flow fractionation; MQFFF: Magnetic
548
quadrupole field flow fractionation; RBCs: Red blood cells.
