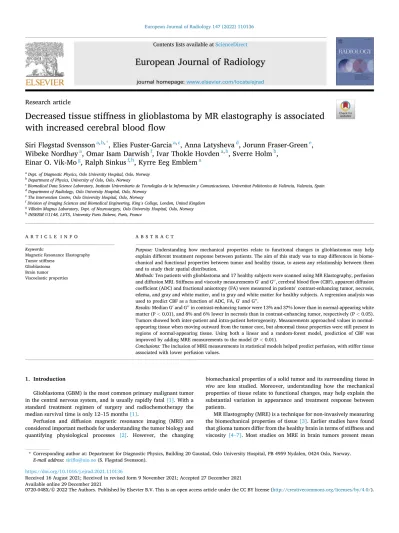

Decreased tissue stiffness in glioblastoma by MR elastography is associated with increased cerebral blood flow

(1)

European Journal of Radiology 147 (2022) 110136

Available online 29 December 2021

Research article

Decreased tissue stiffness in glioblastoma by MR elastography is associated with increased cerebral blood flow
