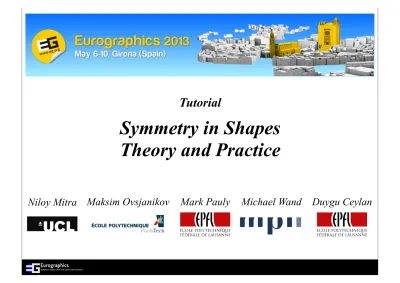

Symmetry in Shapes Theory and Practice

(1)

Tutorial

Symmetry in Shapes Theory and Practice

Niloy Mitra Maksim Ovsjanikov Mark Pauly Michael Wand Duygu Ceylan

(2)

Geometry

geo = earth metria = measure

γεωµετρία

“The branch of mathematics

concerned with questions of shape, size, relative position of figures, and the properties of space.”

(3)

10

⁰

Charles and Ray Eames

Powers of Ten, 1977 10

^-9

10

^-8

10

^-2

10

²

10

³

10

⁵

10

⁷

10

²¹

10

²⁵

10

^-4

10

^-5

10

^-16

(4)

Symmetry

συµµετρία

1. “similarity, correspondence, or balance among systems or parts of a system

2. “an exact correspondence in position or form about a given point, line, or plane”

3. “beauty or harmony of form based on a proportionate arrangement of parts”

Collins English Dictionary

source: wikipedia

(5)

Symmetry

(6)

Symmetry

(7)

Symmetry

Group Theory

• Mathematical language of symmetry

H. Weyl, Symmetry. Princeton University Press, 1952

(8)

Transformations

Scale

Translation Rotation

(9)

Symmetry Groups

Symmetry as invariance to transformations

Rotation by

³⁶⁰^◦

5 = 72^◦ 2 · 360^◦

5 = 144^◦ 3 · 360^◦

5 = 216^◦ 4 · 360^◦

5 = 288^◦ 5 · 360^◦

5 = 360^◦ = 0^◦

Cyclic Group C

5

(10)

Symmetry Groups

Symmetry as invariance to transformations

2 · 360^◦

5 = 144^◦ 3 · 360^◦

5 = 216^◦ 4 · 360^◦

5 = 288^◦ 5 · 360^◦

5 = 360^◦ = 0^◦

Reflection

Dihedral Group D

5

Cyclic Group C

5

Rotation by

³⁶⁰^◦

5 = 72^◦

(11)

Symmetry Groups

Group Generators

Dihedral Group D5

= 3

= 4

= 5

= 2

= =

=

2

=

3

=

4

generating transformations

(12)

Symmetry Groups

Group Axioms

•

Closure a, b ∈ G → a · b ∈ G

a = Ref. A b = Ref. B

= =

?

a ⋅ b = Ref. A ⋅ Ref. B = Rot. 288°

(13)

Symmetry Groups

Group Axioms

•

Closure

•

Associative

a, b ∈ G → a · b ∈ G

a, b, c ∈ G → (a · b) · c = a · (b · c)

(14)

Symmetry Groups

Group Axioms

•

Closure

•

Associative

•

Identity

a, b ∈ G → a · b ∈ G

a, b, c ∈ G → (a · b) · c = a · (b · c)

∃ 1 ∈ G → ∀ a ∈ G : 1 · a = a · 1 = a

(15)

Rot. 72°

Symmetry Groups

Group Axioms

•

Closure

•

Associative

•

Identity

•

Inverse

a, b ∈ G → a · b ∈ G

a, b, c ∈ G → (a · b) · c = a · (b · c)

∃ 1 ∈ G → ∀ a ∈ G : 1 · a = a · 1 = a

∀ a ∈ G ∃ b → a · b = b · a = 1

Rot. 288°

(16)

Symmetry Groups

(17)

Symmetry Groups

Group Generators

(18)

Patterns

1D - Frieze Groups 2D - Wallpaper Groups

(19)

Human Brain

Symmetry Groups?

Spiral Galaxy Antibody

Design by F. Gehry Roof Construction Metal Foam

(20)

Classification

Global vs. Partial

(21)

Classification

Global vs. Partial

Exact vs. Approximate

(22)

Classification

Global vs. Partial

Exact vs. Approximate

Intrinsic vs. Extrinsic

(23)

Understanding Geometry

Physical Object

Digital Measurement

Acquisition Reconstruction

Geometry Representation

(24)

Understanding Geometry

Symmetry Analysis Reconstruction

Symmetry encodes Redundancy

(25)

Symmetry & Information

“100 Random Points” “A 10x10 Regular Grid of Points”

High Information Content Low Information Content

Symmetry is Absence of information

(26)

Symmetry & Information

→ structure discovery by minimizing representation cost

Symmetry is Absence of information

(27)

Symmetry & Information

→ structure discovery by minimizing representation cost
