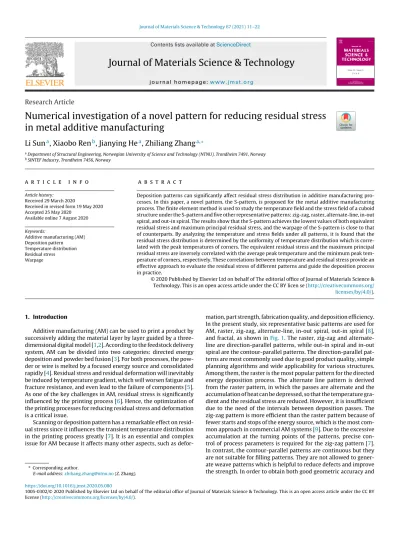

Numerical investigation of a novel pattern for reducing residual stress in metal additive manufacturing

Li Sun

a

, Xiaobo Ren

b

, Jianying He

a

, Zhiliang Zhang

a,∗

aDepartmentofStructuralEngineering,NorwegianUniversityofScienceandTechnology(NTNU),Trondheim7491,Norway

bSINTEFIndustry,Trondheim7456,Norway

a rt i c l e i nf o

Articlehistory:

Received29March2020

Receivedinrevisedform19May2020 Accepted25May2020

Availableonline7August2020

Keywords:

Additivemanufacturing(AM) Depositionpattern Temperaturedistribution Residualstress Warpage

a b s t ra c t

Depositionpatternscansignificantlyaffectresidualstressdistributioninadditivemanufacturingpro- cesses.Inthispaper,anovelpattern,theS-pattern,isproposedforthemetaladditivemanufacturing process.Thefiniteelementmethodisusedtostudythetemperaturefieldandthestressfieldofacuboid structureundertheS-patternandfiveotherrepresentativepatterns:zig-zag,raster,alternate-line,in-out spiral,andout-inspiral.TheresultsshowthattheS-patternachievesthelowestvaluesofbothequivalent residualstressandmaximumprincipalresidualstress,andthewarpageoftheS-patternisclosetothat ofcounterparts.Byanalyzingthetemperatureandstressfieldsunderallpatterns,itisfoundthatthe residualstressdistributionisdeterminedbytheuniformityoftemperaturedistributionwhichiscorre- latedwiththepeaktemperaturesofcorners.Theequivalentresidualstressandthemaximumprincipal residualstressareinverselycorrelatedwiththeaveragepeaktemperatureandtheminimumpeaktem- peratureofcorners,respectively.Thesecorrelationsbetweentemperatureandresidualstressprovidean effectiveapproachtoevaluatetheresidualstressofdifferentpatternsandguidethedepositionprocess inpractice.

©2020PublishedbyElsevierLtdonbehalfofTheeditorialofficeofJournalofMaterialsScience&

Technology.ThisisanopenaccessarticleundertheCCBYlicense(http://creativecommons.org/

licenses/by/4.0/).

1. Introduction

Additivemanufacturing(AM)canbeusedtoprintaproductby successivelyaddingthemateriallayerbylayerguidedbyathree- dimensionaldigitalmodel[1,2].Accordingtothefeedstockdelivery system,AMcanbedividedintotwocategories:directedenergy depositionandpowderbedfusion[3].Forbothprocesses,thepow- derorwireismeltedbyafocusedenergysourceandconsolidated rapidly[4].Residualstressandresidualdeformationwillinevitably beinducedbytemperaturegradient,whichwillworsenfatigueand fractureresistance,andevenleadtothefailureofcomponents[5].

AsoneofthekeychallengesinAM,residualstressissignificantly influencedbytheprintingprocess[6].Hence,theoptimizationof theprintingprocessesforreducingresidualstressanddeformation isacriticalissue.

Scanningordepositionpatternhasaremarkableeffectonresid- ualstresssinceitinfluencesthetransienttemperaturedistribution intheprintingprocessgreatly[7].Itisanessentialandcomplex issueforAMbecauseitaffectsmanyotheraspects,suchasdefor-

Correspondingauthor.

E-mailaddress:[email protected](Z.Zhang).

mation,partstrength,fabricationquality,anddepositionefficiency.

Inthepresentstudy,sixrepresentativebasicpatternsareusedfor AM,raster,zig-zag,alternate-line,in-outspiral,out-inspiral[8], andfractal,asshowninFig.1.Theraster,zig-zagandalternate- linearedirection-parallelpatterns,whileout-inspiralandin-out spiralarethecontour-parallelpatterns.Thedirection-parallelpat- ternsaremostcommonlyusedduetogoodproductquality,simple planningalgorithmsandwideapplicabilityforvariousstructures.

Amongthem,therasteristhemostpopularpatternforthedirected energydepositionprocess.The alternatelinepattern is derived fromtherasterpattern,inwhichthepassesarealternateandthe accumulationofheatcanbedepressed,sothatthetemperaturegra- dientandtheresidualstressarereduced.However,itisinsufficient duetotheneedoftheintervalsbetweendepositionpasses.The zig-zagpatternismoreefficientthantherasterpatternbecauseof fewerstartsandstopsoftheenergysource,whichisthemostcom- monapproachincommercialAMsystems[9].Duetotheexcessive accumulationattheturningpointsofthepatterns,precisecon- trolofprocessparametersisrequiredforthezig-zagpattern[7].

Incontrast,thecontour-parallelpatternsarecontinuousbutthey arenotsuitableforfillingpatterns.Theyarenotallowedtogener- ateweavepatternswhichishelpfultoreducedefectsandimprove thestrength.Inordertoobtainbothgoodgeometricaccuracyand https://doi.org/10.1016/j.jmst.2020.05.080

1005-0302/©2020PublishedbyElsevierLtdonbehalfofTheeditorialofficeofJournalofMaterialsScience&Technology.ThisisanopenaccessarticleundertheCCBY license(http://creativecommons.org/licenses/by/4.0/).

(2)

L.Sunetal. JournalofMaterialsScience&Technology67(2021)11–22

Fig.1.Representativedepositionpatterns:(a)Zig-zag;(b)Raster;(c)Alternate-line;(d)Out-inspiral;(e)In-outspiral;(f)Hilbert.

highconstructionefficiency,thecombinationofcontour-parallel patternsandzig-zagpatternisdeveloped,andthecontourandzig- zagpatternsareappliedtofilltheinternalareaandtheboundary areaofthepart,respectively[10,11].Thefractalpatternisstillat theprimarystageoftheapplicationasitisonlyusedinthelaser processduetomanycorners[7].

Manyresearchershavestudiedresidualstressesandwarpage underdifferentpatterns[7,[12–18,20],[12–18,20][49]].Thecuboid structures with rectangular or square section, thin-walled, enclosed, and cross structures were investigated, and the fac- tors affecting residualstressand warpage wereanalyzed. Most studies focusedonthewidth-wisezig-zag,length-wise zig-zag, out-inspiral,andin-outspiralpatterns.Amongdirection-parallel patterns,thewidth-wisezig-zagpattern showedthemaximum residualstressanddistortion,whilethelength-wisezig-zagpattern resultedinlowerdistortionduetomorehomogeneoustempera- turedistribution.Forcontour-parallelpatterns,theout-inspiral resultedinhigherresidualstressesbecausetheheatwasaccumu- latedinwardandconcentratedinthecenterpartasthedeposition process, while the heat dissipated outward and thus the tem- peraturedistributionwasmorehomogeneousunderin-outspiral pattern[21].Manystudieshaveinvestigatedtheeffectofpattern elementlengthontheresidualstressandconcludedthatashorter elementcouldlowertheresidualstressandtheislandscanning couldreducetheresidualstressandpartdeformation[16,22–25].

Schröfferetal.[26]proposedtheislandplanningstrategywhich achievedmorehomogeneoustemperatureandstressdistributions.

Zaehetal.[27]comparedtheresidualstressunderisland,unidi- rectional,andalternatingscanningstrategiesandconcludedthat chequerboardproducedlowestresidualstress.Luetal.[28]stud- iedtheislandsizeeffectonresidualstressinselectivelasermelting andfoundthatislandwithadimensionof5mm×5mmexhibited lowerresidualstressthantheislandswithadimensionof7mm×7 mmor3mm×3mm.Basedontheislandpattern,Ramosetal.[29]

proposedtheintermittentstrategytocontrolthescanningorder for theselectivelasermeltingprocess,whichcouldreduceheat accumulationbyavoidingtheflowingislandadjacenttothetwo previousislands.Parryetal.numerallystudiedtheeffectofdepo- sitionpartgeometryontheresidualstressdistributioninselective lasermelting.Theresultsshowedthatwhenthescanningvector

lengthwaslessthan3mm,thelaserscanningstrategyplayedan importantroleintheresidualstress,whilewhenthescanningvec- torlengthwasmorethan3mm,thelaserscanningstrategyhad nosignificanteffectontheresidualstress.Parryetal.alsocon- cludedalternatescanvectordirections producedlowerresidual stress,whichwasveryusefulforscanningstrategydesign[30,31].

Somestudieshavecomparedtheresidualstressesofdirection- parallel,contour-parallel,andfractalpatterns.Somashekara’s[32]

workshowedthattherasterpatternachievedthelowerresidual stressesthanthespiralpatterns,owingtothesmallerthermalmis- matchbetweenthedepositionmaterialandthesubstrateaswellas thelowersecant-mismatchtemperaturerateatthetopandbottom surfaceofthesubstrate.Maetal.[33]numerallystudiedthemax- imumdeformationunderzig-zagandfractalscanningpatternsin theselectivelasermeltingprocess,andfoundthefractalscanning patternexhibitedsmallerdistortion.Yuetal.[34]experimentally studiedthepartdistortionofraster,fractal,out-inspiral,andin-out spiralpatternsinlasersolidforming.Theresultssuggestedthatthe Hibertpatternpossessedthelowestdistortionfollowedbythein- outspiralpattern.Yan[7]comparedthesixrepresentativepatterns andconcludedthatthealternate-linepatternexhibitedthemini- mumresidualstressandwarpagewhich wasmainlydependent onthetransienttemperaturegradients.Chengetal.[21]evaluated theresidualstressanddeformationoftheisland,spiral,andzig-zag patternswithdifferentanglesofrotationinselectivelasermelting.

Theirfindingsshowedthattheout-inscanningpatternproduced themaximumresidualstress.Comparedtootheranglesofrotation inzig-zagpatterns,the45inclinedlinezig-zagpatternattainedthe lowestresidualstressesanddeformation.Despitethoseresearches ontheoptimalpatternforreducingresidualstress,mostofthem focusonthesixtypicalpatternsandtheresidualstressisstilla challengeforAM.Noneoftheexistingpatternscanperformwellin allaspects:partstrength,printingefficiency,applicability,surface accuracy,andreducingresidualstress.Moreover,therelationships betweentransienttemperatureandresidualstressareonlyquali- tativelydiscussedtoexplainhowthepatternsaffectresidualstress [7,14,17].Renetal.appliedtwocriteriatoevaluatethelocalized andoverallheataccumulationandproposedawaytofindtheopti- malscanningpatternwithminimumdistortion[19].However,the residualstresswasnotconsideredinthiswork.Hencenewpattern

(3)

Fig.2. Finiteelementmodel.

possessingmultipleadvantages,especiallyminimizingtheresidual stress,isrequired.Simplebutquantitativecorrelationsbetween temperature and residualstress arehighly desiredfor compar- ingresidualstressesunderdifferentpatternsandoptimizingAM patternforindustrycontext.

Inthispaper,anovelS-patternisproposedforreducingresid- ualstressinmetalAMbasedonfiniteelement(FE)analyses.The temperature,residualstress,andresidualwarpageunderthenew patternarestudiedandcomparedwiththeresultsoffivetypical patterns.Thecorrelationsbetweenthetransienttemperatureand resultedresidualstressareestablishedforscreeningthepatterns.

Insection2,a3Dthermal-mechanicalmodelisconstructedtostudy thethermalfieldandresidualstressdistribution.Therequirements ofapatternplanningstrategyforAMandtheadvantagesanddis- advantages ofsixtypicalpatternsareanalyzed.Accordingly,the S-patternisproposedinsection3.Detailedresultsabouttheeffect ofpatternsonthetransienttemperaturefield,residualstress,and warpagearepresentedinsection4.Thecorrelationbetweentem- perature andresidualstressis discussedinsection5.The main conclusionsandfutureworkaresummarizedinsection6.

2. Numericalmethodology

Numericalmodelingisagoodwaytostudythecomplexthermo- mechanical performance with relations to process [35]. In this work,theFEmethodwasusedtoscrutinizetheeffectofdeposi- tionpatternsonthetransienttemperaturefield,residualstress, andwarpage.

Themodelwasonesquaredepositionlayerwiththedimen- sions of120mm×120mm×2.23mmandasquare substrate withthedimensionsof200mm×200mm×20mm,asshown inFig.2.Thedepositionlayerwasdividedinto36×36×2ele- mentsandtheaveragemeshsizewas3.3mm×3.3mm×1.1175 mm.Relativelycoarsemeshwasassignedintheremainingpart.

Aluminumalloy2319wasselectedinthisstudy.Themeltingrange was543−643C,andthemassdensitywasassumedtobe2823 kg/m3andtemperatureindependent.Thetemperature-dependent materialpropertiesofAA2319,suchasthethermalconductivity coefficient,thermalexpansioncoefficient,temperature-dependent yieldstress,areobtainedfromRef.[36,37]andpresentedinFig.3.

Thewirearcadditivemanufacturingprocesswassimulatedin ABAQUS2018andthepathsoftheaddingmaterialandheatinput weredefinedbyadditivemanufacturingplugin[39].Theelements areactivatedbytheefficientmethod ¨progressiveelementactiva- tion ¨and theprocessiscontrolledbytheprogrammedtime[39].

Theuncoupledthermal-mechanicalanalysisincludedtwostages:

thethermalanalysisandmechanicalanalysis.Theproceduretypes wereheattransfer(transient)andstaticgeneral,respectively.There

Table1

Parametersofthedouble-ellipsoidheatsource.

af(mm) ar(mm) b(mm) c(mm) Q(w) ff fr

4 6 5 5 5000 0.6 1.4

weremanyfactorsaffectingthemignitudeofresidualstress,such asheatsource,weldingspeed,pre-heattemperature[6].Tomake theresidualstressresultsunderdifferentpatternscomparable,all thesimulationswereperformedunderthesameparametersand theonlyvariablewasthedepositionpattern.

Forthethermalanalysis,theelementtypewaseight-nodelinear brick(DC3D8).Theconductionlossofthebottomsurfaceismod- eledbyanequivalentconvectioncoefficient(123W/m2k)[40–42].

Whiletheothersurfacesofthemodelweresubjectedtoradiation andconvectionheatloss(radiationcoefficientof0.8andconvective coefficientof8.5W/(m2K)[41,42]).Asufficientlylongwaitingtime (5000s)wasusedinthecoolingstagetoguaranteethemodelto becooleddowntoroomtemperaturenaturally.Themovingheat sourcewasa double-ellipsoidheatsource[43],whereaf andar werethelengthofthefrontandtherearellipsoidoftheheatsource.

bwasthehalfwidthandcwasthedepthoftheheatsource.Qwas thepowerinput.Thefractionfactorsoftheheatfluxinthefront andrearpartswererepresentedbyffandfr,respectively,andthey heldtherelationthatff+fr=2.Theparametervaluesareshown inTable1.

Afterthethermalanalysis,thetransienttemperaturefieldout- putwasimportedintothemechanicalanalysis.ThesameFEmesh wasusedwhiletheelementtypechangedtoC3D8R.Thebottom ofthesubstrateismechanicallyfixedduringthedepositionpro- cessandthenreleasedafterthemodelhasbeencooleddownto roomtemperaturetoobtaintheresidualstressanddeformationof thepart.Thephasetransformationandthesofteningeffectofthe materialarenotconsideredinthismodel.

3. Depositionpatternsinadditivemanufacturing

Themost representative patterns used in AM areshown in Fig.1(a–e).Anidealpatternshouldperformwellinmanyaspects.

Therequirementsofapatternaresummarizedasfollows[9].

1Fewerpatternpasses:thenumberofpatternpassesdependson thenumberof startsand stopsof energy source.More starts andstopswillintroducelargercumulativedeviationsandlower depositionefficiency.Therefore,toimprovethesurfaceaccuracy anddepositionefficiency,thenumberofpatternpassesshould beminimizedwithineachlayertoreducethenumberofstarts andstops.Withthisregardacontinuouspatternispreferable[9].

2Fewerpatternelements:patternelementsareasequenceofline segmentsconnectingtoformthepattern,dependingonthenum- berofturns.Thefeedstockandheatinputareeasilyexcessiveat thestartandendpositionsofpatternelements.Excessiveenergy inputwillleadtovoids[44].Hence,thenumberofpatternele- mentsshouldbeminimizedtoimprovethesurfaceaccuracyand finalpartquality.

3Allowancetogenerateaweavepattern:theweavepatterncan begeneratedbythecrosspassesamonglayers,whichisbenefi- cialforthecomponentstrength.Thedirectional-parallelpatterns allowgeneratingweavepatternsbychangingthedepositionori- entationamongdifferentlayers.Thecontour-parallelpatterns are rarely used as fill patterns becauseeach path is directly aboveeachotheroneach layer.Thatcanseverelydeteriorate thestrengthoftheparts[7].

4Minimumresidualstressandwarpage:thepatternshaveagreat impactonresidualstressandwarpagewhicharethekeychal- lengesin termsofstructuralintegrity andthefinal qualityof

(4)

L.Sunetal. JournalofMaterialsScience&Technology67(2021)11–22

Fig.3.PhysicalpropertiesofAA2319:(a)thermalconductivityandspecificheat,(b)coefficientofthermalexpansion,(c)Young’smodulusandyieldstrength,and(d) strain-hardening[36,38].

Fig.4. Theproposeddepositionpattern:Spattern(a)Onelayer;(b)Multi-layer.

printedcomponentsinAM.Thepatternswhichcanachievemin- imumresidualstressesandwarpagearefavorable.

5 Adjustable passlength: themaximum residual stress can be reducedbyshorteningthelengthoftheconstituentpassesofthe pattern.Hence,adjustablepasslengthhelpstoreduceresidual stressandwarpage.Besides,adjustablepasslengthallowsthe patterntobeappliedindifferentstructures.

Table2summarizestheadvantagesanddisadvantagesofeach pattern.Asisshown,noneoftheexistingpatternscanpossessall theadvantageslistedabove.In thiswork,a newpattern,which combinesmultipleadvantagesofotherexistingpatterns,isdevel- oped. Since the pattern is similartothe letter “S”,it is named S-pattern,asshowninFig.4(a).

InFig.4(a),thestartandendpositionofSpatternaremarked ingreenandpurplepoints.Thenumbersshowthesegmentorder.

ItisobviousthattheS-patterniscontinuousandhas13lineele- mentsduetotheturns,whilethelineelementsnumbersofthesix typicalpatternsinFig.1(a)-(f)are8,8,8,16,16,51,respectively.

Hence,thelineelementnumberofS-patternissmallerthanother contour-parallelpatterns,whichwillleadtolessdepositionerror.

Fig.5.Spatternintheshapemadeupofsquaresandrectangles.

TheS-patternallowsgeneratingaweavepatternamongdifferent layers,asshowninFig.4(b).Forshapesmakingupofsquaresand rectangles,thematchingSpatterncanbegeneratedbyadjusting thelengthofpassesandthenumberofturns,asshowninFig.5.

Besides,itshouldbenotedthatthelengthofthehorizontalpasses,

(5)

Fig.6. Thetransienttemperaturedistributionsofallpatternsattheendofdepositionprocess(unit:C,thecolorscaleofallsubfiguresisfrom20Cto643C(liquidus temperature)),(a)Zig-zag;(b)Raster;(c)Alternate-line;(d)Out-inspiral;(e)In-outspiral;(f)S.

likesegments2,4,6,shouldbeconsistentsincethenumbersofthe verticalpassesaroundthehorizontalpassesarethesame.However, theSpatternisunsuitableforround,irregular,orothercomplex shapes.Forlargesizesorcomplexstructures,itisrecommended todivideintosmallsquaresorrectangles,thenapplytheSpattern toeachsub-dividedregion.Inthiswork,theeffectofdifferentpat- ternsontheresidualstressandwarpagewillbeinvestigated.Since fractalpatternsarepresentlyusedonlyinselectivelasersintering [7],itisnotconsidered.

4. Results

4.1. Transienttemperaturefield

Tostudythetemperaturedistributionhistoryunderdifferent patterns,thetransienttemperaturedistributionsofallpatternsat theendofthedepositionprocessareshowninFig.6.Thegreycolor showsthemeltingzone.Itisobservedthatthetemperaturegradi- entsarerelativelyhighnearthemeltingpoolsandthedeposition patternshavelittleeffectonthemeltingpoolsize.

However, the deposition pattern remarkably influences the temperature distribution. For zig-zag, raster, and alternate-line deposition patterns (Fig. 6(a–c)), the temperature distribution characteristicsaresimilarsinceallofthesepatternsaredirection- parallelpatterns.Allofthemaresymmetricallydistributedalong the x-direction,and thehigh-temperatureregions are nearthe bottom.Thecorrespondingtemperaturesforrasterandzig-zagpat- ternsareveryclose,whilethetemperaturesunderalternate-line patterns are relatively high. Hence the alternate-line deposi- tion pattern yields more uniformtemperature distributionand lowertemperaturegradient.Similartoalternate-linepattern,the S-pattern(Fig.6(f))alsoachievesmoreuniformtemperaturedis- tribution than others. It is because both alternate-line pattern and S-pattern havegood heat transferperformance. Theout-in spiraldepositionpattern(Fig.6(d))produces acircular symme-

trytemperaturedistributionandconcentratesahigh-temperature area(over400C)aroundthemeltingpool.Comparedwithother depositionpatterns,ithasamoreconcentratedheatdistribution.

Theapproximatediagonalsymmetrytemperaturedistributionis shownunderthein-outspiraldepositionpattern(Fig.6(e)),which caneffectivelyreducethesubstratedistortion.

4.2. Residualstresses

Inthiswork,theequivalentandmaximumprincipalresidual stress(eand1)arestudied,sinceeisrelevanttoplasticyielding andthe1canbeconsideredasaprimeindicatoroffatigueand fractureperformance[45].Figs.7and8showthetopvieweand 1 distributionofthesixdepositionpatternsafterremovingthe constrainsfromthesubstratebase.

Itisobservedthat,forallthepatterns,themaximum1(1,max) isattheedgeofthesquaredepositionarea.Thisisbecausethat thecoolingrateattheedgeofthesquaredepositionareaishigher than the interior and the temperature difference between the depositionareais larger. 1 is usuallydependentonthelongi- tudinalstress(paralleltothescanvector),whichincreaseswith scanvector lengthduetothepresence ofthethermal gradient paralleltothescanvector.Hence,1,maxisatthesquaredeposi- tionareainsteadofthesubstrate.However,stressconcentration happensaroundthefourcornersofthesquare depositionarea, whichiscausedbythesuddenchangeinthegeometryofthemode.

Hence,themaximume(e,max)occursnearthefourcornersofthe squaredepositionareaatthesubstrate.Thestressdistributionsof zig-zag(Fig.7and8(a))andraster(Fig.7and8(b))depositionpat- ternsareprettysimilar.Bothofthemhavehigherresidualstress atthe top.The out-inspiral(Fig.7 and 8(d)) and in-outspiral (Fig.7and8(e))patternproducecircularsymmetrystressdistri- butions,andtheresidualstress oftheout-inspiral isrelatively higher.Thealternate-linepattern(Fig.7and8(c))andS-pattern (Fig.7and8(f))showlowerandmorehomogeneousresidualstress

(6)

L.Sunetal. JournalofMaterialsScience&Technology67(2021)11–22

Fig.7. Equivalentresidualstressdistributionofdifferentdepositionpatterns,(topview,unit:Pa),(a)Zig-zag;(b)Raster;(c)Alternate-line;(d)Out-inspiral;(e)In-outspiral;

(f)S.

Table2

SummaryofAMdepositionpatterns.

Zig-zag Raster Alternate-line In-outspiral Out-inspiral Hilbert S

Continuous × ×

Lesspatternelements ×

weavepattern

× ×

Adjustablepasslength × × × × ×

Lowerresidualstress × ×

×

Lowerwarpage × ×

Note:

-Positive;×-Negative;-Medium(betweentheworstandbest).

distributionsthanotherpatterns,inconsistentwithtemperature distribution.

Thenormalizede and1 alongthediagonalofthetopsur- face of the deposition layerare plotted in Fig. 9. Asindicated, for all patterns, the maximum magnitudesof residual stresses occur at both ends of the curves. For most of nodes, the S- pattern achieves thelowestnormalized residualstresses, while theout-inspiralpatterninducesthehighestnormalizedresidual stresses.

Inordertocomparethemaximumresidualstress,thee,max

and1,maxfromlargesttosmallestaresummarizedinFig.10.For botheand1,theS-patternhastheminimumvalues.Indetail, thee,maxand1,maxofS-patternare10.8%–36.9%and9.5%–32.7

%lowerthanthoseoftheotherfivepatterns,respectively.

4.3. Warpage

WarpageisanothermajorchallengeintheAMprocess,which cancausepartdistortion,lossofgeometrictolerances,andcracks [46,47].Moreover,residualstressandwarpageoftenoccursimulta- neouslybecausetheyinteractwitheachother.Hence,inthiswork, thewarpagesunderdifferentpatternsarealsostudied.

Fig.11 shows thewarpage inZ-directionunder thesixpat- terns. For all patterns, the warpage at the starting deposition positionislargerduetothehighertemperaturegradientbetween

thedepositionmaterialandthesubstrateattheinitialposition.

Thewarpage distributionofthezig-zag patternand rasterpat- tern are similar and almost symmetric in theY-direction. The warpagedistributionoftheout-inspiralandin-outspiralpattern areapproximativelysymmetricalongthediagonallineofthesub- strate.Fortheout-inspiralpattern,thedisplacementofthecenter partisnegativewhilethein-outspiralpatternleadstoopposite results. Smallerwarpage canbe foundunderthe alternate-line pattern,andpositiveandnegativedisplacementarealternatecor- respondingtothepattern inthedepositionarea.For Spattern, thewarpage offourcornersandthefirstScontourisrelatively high.Amongallpatterns,thein-outspiralpatterncanachievethe mosthomogeneouswarpage,sincetheheatisaccumulatedout- ward.

InordertocomparethedeformationofthesubstrateinFig.11, theUzalongthediagonaldirectionisnormalizedbythethicknessof thesubstrate(d)andthenormalizedwarpageUz/dissummarized inFig.12.Forthecenterpart,allthecurvescollapse.Attheedge, itisobservedthatthein-outspiralpatternachievestheminimum normalizedwarpage.

Thenormalized warpages at both ends are added toobtain themaximumnormalizedwarpageUz,max/dofdifferentpatterns, whichareplottedinFig.13.Thein-outspiralpatterncanachieve thelowestwarpage,whiletherasterpatternproducesthehighest.

Thereisnomajordifferencebetweenotherpatterns.

(7)

Fig.8. Maximumprincipalresidualstressdistributionofdifferentdepositionpatterns,(topview,unit:Pa),(a)Zig-zag;(b)Raster;(c)Alternate-line;(d)Out-inspiral;(e) In-outspiral;(f)S.

Fig.9. Normalizedresidualstressalongthediagonaldirectionofdifferentpatterns,(a)equivalentresidualstress;(b)maximumprincipalresidualstress.

Fig.10.Normalizedmaximumresidualstressalongthediagonaldirectionofdifferentpatterns,(a)equivalentresidualstress(b)maximumprincipalresidualstress.

(8)

L.Sunetal. JournalofMaterialsScience&Technology67(2021)11–22

Fig.11. Deformationdistributionofdifferentdepositionpatterns(unit:mm),(a)Zig-zag;(b)Raster;(c)Alternate-line;(d)Out-inspiral;(e)In-outspiral;(f)S.

Fig.12.Normalizedwarpageofdifferentdepositionpatterns.

Fig.13.Normalizedmaximumwarpageamongdifferentdepositionpatterns.

5. Discussion

5.1. Residualstressforvariouspatterns

Asabovementioned,thedepositionpatternsshowasignificant influenceonresidualstress.Toexploretheoriginoftheresidual stressdifferencesin thesixpatterns,thetemperatureand final residualstressdistributionresultsareanalyzedfromtheperspec- tiveofdepositionvectorsequence,lengthanddirections.

ForSpattern,thepriordepositionvectors(1,2,3,4,5)inFig.4 aremoredispersedinthedepositionareacomparedwithotherpat- terns,whichhelpstoimprovetheefficiencyofheatdiffusiondueto agreatersurfaceareaforheatdissipation.Hencethetemperature distributionismoreuniforminsteadofheatbeingconcentrated inthedepositionarea.Thepriordepositionvectors(1,2,3,4,5)can alsohelptoquicklypreheatthewholesubstrateandreducethe magnitudeof thetemperature gradientfor thenextdeposition vector.Furthermore,theSpatternis acontinuouscontourpat- tern,andthesubsequentdepositionvectors(6,7,8,9...)arealong thepreviousvectors. Thiswill alsopreventthe heatfrom get- tingconcentratedin thewholedepositionprocess.In thesame manner,thealternate-linepatterncanachievemorehomogeneous temperaturedistributionand lowerresidualstressesthanother typicalpatterns.Fortheraster, zig-zagand out-inpatterns,the subsequentdepositionvectorsareadjacenttothepriordeposi- tionvectors. Dependingonthedepositionvector sequence,the heataccumulatedat oneside or thecenterpartof thedeposi- tionareaover time, asshown in Fig. 6(a),(b) and (d).For the in-outpattern, theheat willaccumulate around theedges due totheoutwarddepositionvectors.However,thehighheatdissi- pationefficiencyattheedgewillreduceheataccumulation.The temperaturedistributionunderthein-outpatternbecomesmore uniformandthustheresultantresidualstressislowerthanthat oftheraster,zig-zag,andout-inpatterns.Inconclusion,themain reasonthattheSpatterncanobtainthelowerresidualstressis thatthedepositionvectorsaremoreuniformlydistributed over time.

Parryetal.foundthatanincreasingmeanscanvectorlength couldraisetheoverallmagnitudeofresidualstresses.Thisisdueto

(9)

Fig.14.edistributionofthesubstratebeforeremovingtheconstraint(bottomview,unit:Pa),(a)Zig-zag;(b)Raster;(c)Alternate-line;(d)Out-inspiral;(e)In-outspiral;

(f)S.

Table3

Meanandvarianceofdepositionvectorlengthsfordifferentpatterns.

Patterns Raster Zig-zag Alternate-line Out-inspiral In-outspiral S

Mean(mm) 12 12 12 6.545 6.545 7.15

Variance 0 0 0 9.840 9.840 7.028

theriseofthelongitudinalstresswithscanvectorlength,whichis themaincontributiontostressbecauseofitslargethermalgradi- entparalleltothescanvector[30,31].However,shortscanvector lengthmightcauseaheataccumulationwhichmayleadtohigh residual stress locally. Hence,lower fluctuations of scan vector lengthcouldreducetheriskofhigherresidualstress.Themean andvarianceofdepositionvectorlengthsfordifferentpatternsin thisworkaresummarizedinTable3.Themeandepositionvector lengthoftheSpatternismuchshorterthanthatofraster,zig-zag andalternate-linepatterns,whichisoneofthereasonswhythe residualstressoftheSpatternissmaller.Forout-inandin-outpat- terns,themeandepositionvectorlengthsareslightlysmallerthan thatofSpatterns.However,duetotheveryshortdepositionvec- torsinthecenter,theirvariancesarelargerthanthatofSpattern.

Thispartlyexplainswhytheout-inandin-outpatternsshowhigher residualstressthanSpattern.

Accordingtotheabovediscussion,boththemeanandvariance ofdepositionvectorlengthsareimportantforresidualstress.In Parry’swork,itisrecommendedthattoavoidtheshortadjacent depositionvectors(<2.5mm)andlongdepositionvectors(>5mm) inselectivelasermelting.Itisthusrecommendedtodividethelarge structuresintosmallislands.ThiscanbeachievedbytheSpat- tern,inwhichthedepositionvectorlengthisadjustable.Theexact valueofthecriticaldepositionvectorlengthremainstobestudied forwirearcadditivemanufacturing.However,itshouldbenoted thatdifferentresidualstressdistributionmaystilloccur,likeout-in spiral,in-outspiralorraster,alternate-linepatterns,eventhough theypossessthesamemeanorvarianceofthedepositionvectors lengths.Thismaystemfromthefactthattheresidualstressesare alsodependentontheotherfactors.

Moreover, the alternate directions of scan vectors can also reducetheresidualstressandproduceamoreanisotropicstress fieldin thecomponent[31]. Comparedtootherpatterns,theS patternhasamoreuniformdistributionofthedepositionvector directions,andmostoftheadjacentvectorsareindifferentdirec- tions,asshowninFig.5.Hence,itcanbeexpectedthatthealternate directionsofscanvectorshelpSpatterntoachievemoreanisotropic stressfieldandlowerresidualstress.

Insummary,uniformlydistributeddepositionvectorsequence, lower mean and variance of the deposition vector length, and alternatedepositionvectordirectionsfavorreducedresidualstress withinamesoscaleregion.

5.2. Correlationsbetweenthetemperatureandresidualstresses Asmentionedbefore,theresultedresidualstressandwarpage aredependentonthe temperaturefield. For mechanical analy- sis,therearetwostages:beforeremovingtheconstraintandafter removingtheconstraint.Toanalyzetherelationshipbetweenthese two stages, the equivalent stress distributions of the substrate undersixpatternsbeforeandafterremovingtheconstraintare showninFigs.14and15.Itcanbefoundthatthecorresponding stressfieldsbeforeandafterremovingtheconstraintarecorre- lated.ThemoreuniformthestressdistributionisinFig.14,the lowertheresidualstressisinFig.15.Forexample,thesubstrate residualstressdistributionoftheS-patternisrelativelyhomoge- neous,whileaheterogeneousdistributionisobservedintheout-in spiralpatternforming,seeFig.14(d)and(f).Afterremovingthe constraint,theS-patternshowsthemosthomogeneousdistribu- tionofresidualstress,whiletheout-inspiralpatternshowsthe

(10)

L.Sunetal. JournalofMaterialsScience&Technology67(2021)11–22

Fig.15.edistributionofthesubstrateafterremovingtheconstraints(bottomview,unit:Pa),(a)Zig-zag;(s)Raster;(c)Alternate-line;(d)Out-inspiral;(e)In-outspiral;

(f)S.

Fig.16. Peaktemperaturesofthecornersofdifferentdepositionpatterns.

mostnon-uniformdistributionofresidualstress,seeFig.15(d)and (f).

Theaboveanalysissuggeststhatthefinalresidualstressisdeter- minedbytheuniformityofthestressdistributionbeforeremoving theconstraintwhichdependsonthemagnitudeoftheedgestress sincetheresidualstressesinthecenterportionarealmostequalto theyieldstress.Furthermore,thetemperaturedistributiondeter- minestheuniformityofthestressdistributionbeforeremovingthe constraintandtheedgestressdistributionisrelatedtothepeak temperaturesofedgenodes.Hence,thepeaktemperaturesofthe fourcorners,whichrepresenttheuniformityofthetemperature distribution,canbeusedtoanalyzetheresidualstressdistribution.

Fig.16summarizesthepeaktemperaturesofthefourcorners underthesixdifferentdepositionpatterns.Thepeaktemperatures oftherasterisveryclosetothatofthezig-zag,andsameapplies totheout-inandin-outspiral,owingtothesimilardepositionpat- terns.Forraster,zig-zagandalternate-linepatterns,theTp1andTp2 aresmallerthanTp3andTp4,whileallofthefourpeaktemperatures arecloseforout-inspiralandin-outspiralpatterns.Itisbecause

thecontour-parallelpatterns(in-outspiral,out-inspiral)canpro- ducerelativelyuniformtemperaturedistributioninalldirections whilethedirection-parallelpatterns(raster,zig-zag,andalternate- line)generateconcentratedhightemperatureatoneend.Sinceheat accumulationinthedepositionareaisdepressed,thepeaktemper- aturesunderalternate-linepatternandS-patternarehigherthan thoseofotherpatterns.

Todeveloptherelationshipsbetweentheresidualstressandthe peaktemperaturesofthecorners,theaveragepeaktemperatures andminimumpeaktemperaturesunderthedifferentdeposition patternsareplottedinFig.17(aandb).Itcanbeseenthattheorder ofTp,aveandTp,minareoppositetothatofe,maxand1,max(Fig.10).

Hencee,maxand1,maxareinverselycorrelatedwiththeaverage peaktemperatureandtheminimumpeaktemperatureofcorners, respectively.Inotherwords,ifthepatternproduceshigherpeak temperatureattheedgepart,itwillachievelowerresidualstress.

Thecorrelationsprovideasimpleyeteffectiveapproachtocom- paretheresidualstressunderdifferentpatternsandguidancefor optimizingpatterntoreduceresidualstress,whichcanbeeasily usedinpractice.

Basedonthesimulatedthermalfield,Renetal.proposedan evaluationmethodtodeterminetheoptimalscanningpatternwith minimaldistortion [49]. In this method,twocriteria werepro- posed: (1) theaverageand maximum temperatureswithinthe movingmelt-poolregionateveryunitsimulationstep;(2)tem- peraturedistributionvarianceofthewholepart[49].Theywere usedtoevaluatetheextentoflocalizedandoverallheataccumula- tion.Inourwork,themaximumtemperaturesofthefourcorners ofthesubstrateduringtheentiredepositionprocesswereusedto evaluatetheextentofoverallheataccumulation.Thatistosay, theuniformityoftemperaturedistributionofcuboidstructurewas representedbythepeaktemperaturesofthefourcorners.Thecor- relationsbetweenthepeaktemperatureandtheresidualstress weredeveloped.Thelocalizedheataccumulationwasnotconsid- eredinthisworkduetoitsdependenceontheoveralltemperature distributionuniformity.ItwasalsodemonstratedinRen’sworkthat thelargestvalueoftemperaturedistributionvarianceofthewhole

(11)

Fig.17.(a)Averageand(b)minimumpeaktemperaturesofdifferentdepositionpatterns.

partwaspositivelycorrelatedwiththelargestnormalizedmelt- poolregionmeantemperature[49].ComparedwithRen’smethod, theevaluationmethodinourworkismorestraightforwardand themaximumtemperaturescanbeeasilyobtainedinexperiments, withoutsimulations.

Since the heat transfer process and deposition process of directed energy deposition are similar to those of the powder bed additive manufacturingprocess, theS-pattern and correla- tionsbetweenthepeaktemperatureandtheresidualstresscan alsobeappliedinthepowderbedadditivemanufacturingprocess.

However,thecorrelationsarelimitedtothecuboidstructure.For othergeometries,althoughtheresidualstressdistributionisalso relatedtotheuniformityoftemperaturedistribution,theunifor- mityoftemperaturedistributionshouldbere-evaluated,especially forcomplexstructures.Itshouldbenotedthatthisworkisathe- oretical study,and potentialcollaborationsontheexperimental studyarealwayswelcome.

6. Conclusion

Inthiswork,aso-calledS-patternwasproposed.Theresidual stressandwarpageoftheS-patternandtheotherfivetypicalpat- ternswerestudiedbytheFEmethod.Theresultsshowedthatthe S-patternachievedtheminimumresidualstressincludingequiv- alentresidualstressandmaximumprincipalresidualstressdue tomoreuniformlydistributeddepositionvectorsequence,lower meanandvarianceofthedepositionvectorlength,andalternate depositionvectordirections,whilethewarpageofS-patternwas veryclosetothelevelofotherpatterns.Inaddition,therequire- ments ofa pattern planningstrategyfor AMweresummarized andtheS-patterncouldcombinethevariousadvantagesofexist- ingmethods,suchascontinuous,fewersegments,adjustablepass length,andallowinggeneratingaweavepatternamongdifferent layers.TheS-patterncouldbeusednotonlyinthedirectedenergy depositionbutalsointhepowderbedfusionadditivemanufactur- ingprocess.Hence,theS-patterncanbeconsideredastheoptimum oneamongthesixdepositionpatternsandispromisingforAM.

Theresidualstressdistributionwasdeterminedbytheunifor- mity oftemperature field, which wascorrelated withthepeak temperaturesof corners.Theequivalentresidualstressand the maximumprincipalresidualstresswereinverselycorrelatedwith theaverageandtheminimumpeaktemperatureofcorners,respec- tively.Thecorrelationsprovidedasimpleyeteffectiveapproachfor evaluatingdepositionpatterns.Hence,theresidualstressofdiffer- entpatternscouldbecomparedbyanalyzingthepeaktemperature ofthecorners.

Sofar,onlynumericalstudieswereperformedandconclusions weremadebasedonthefiniteelementanalyses.Inthenearfuture, theexperimentalstudyoftheS-patternwillbeplanned,andthe effectofpasslengthofS-patternontheresidualstressshouldbe consideredtofurtheroptimizethepattern.Theresidualstressand warpageofthemulti-layermodelandcuboidstructureswithrect- angularsectionsundertheS-patternwillbestudied.

Acknowledgments

ThisresearchisfundedbytheChineseScholarshipCounciland theResearchCouncilofNorwaythroughthePetromaks2program (ProjectNo.281927)andtheBIAProgram(ProjectNo.269558)).

References

[1]E.Brandl,F.Palm,V.Michailov,B.Viehweger,C.Leyens,Mater.Des.32(2011) 4665–4675.

[2]J.Song,Y.Chew,L.Jiao,X.Yao,S.K.Moon,G.Bi,Addit.Manuf.24(2018) 543–551.

[3]B.E.Carroll,T.A.Palmer,A.M.Beese,ActaMater.87(2015)309–320.

[4]T.DebRoy,H.L.Wei,J.S.Zuback,T.Mukherjee,J.W.Elmer,J.O.Milewski,A.M.

Beese,A.Wilson-Heid,A.De,W.Zhang,Prog.Mater.Sci.92(2018)112–224.

[5]Y.Chew,J.H.L.Pang,G.Bi,B.Song,J.Mater.Process.Technol.224(2015) 89–101.

[6]J.Oliveira,T.Santos,R.Miranda,Prog.Mater.Sci.107(2020),100590.

[7]W.Yan,Z.Yue,J.Feng,RapidPrototypingJ.23(6)(2017)1057–1068.

[8]S.Routhu,D.Kanakanala,J.Ruan,X.F.Liu,F.Liou,in:InternationalDesign EngineeringTechnicalConferences(DETC2010),Montreal,Quebec,Canada, January1,2010,pp.415–423.

[9]D.H.Ding,Z.X.Pan,D.Cuiuri,H.J.Li,Int.J.Adv.Manuf.Technol.73(2014) 173–183.

[10]G.Q.Jin,W.D.Li,L.Gao,Robot.Comput.-Integr.Manuf.29(2013)23–38.

[11]Y.Zhang,Y.Chen,P.Li,A.T.Male,J.Mater.Process.Technol.135(2003) 347–357.

[12]A.A.Ugla,O.Yilmaz,Arab.J.Sci.Eng.42(2017)4701–4711.

[13]E.Foroozmehr,R.Kovacevic,Int.J.Adv.Manuf.Technol.51(2010)659–669.

[14]N.Nazemi,R.J.Urbanic,Int.J.Adv.Manuf.Technol.96(2018)4123–4143.

[15]D.H.Ding,Z.X.Pan,D.Cuiuri,H.J.Li,RobotComput,-Integr.Manuf.34(2015) 8–19.

[16]C.Y.WangGuilan,ZhangHaiou,ThinSolidFilms435(2003)124–130.

[17]K.Ren,Y.Chew,J.Y.H.Fuh,Y.F.Zhang,G.J.Bi,Mater.Des.162(2019)80–93.

[18]Q.Wu,T.Mukherjee,C.Liu,J.Lu,T.DebRoy,AdditManuf.29(2019),100808.

[19]J.C.Snyder,K.A.Thole,in:ASMETurboExpo:TurbomachineryTechnical ConferenceandExposition,Phoenix,June17-21,2019.

[20]F.Michel,H.Lockett,J.Ding,F.Martina,G.Marinelli,S.Williams,Robot.

Comput.-Integr.Manuf.60(2019)1–11.

[21]B.Cheng,S.Shrestha,K.Chou,Addit.Manuf.12(2016)240–251.

[22]M.B.J.-P.Kruth,E.Yasa,J.Deckers,L.Thijs,J.VanHumbeeck,in:International SymposiumonElectromachining(16th),Shanghai,China,April19,2010.

[23]J.P.Kruth,L.Froyen,J.VanVaerenbergh,P.Mercelis,M.Rombouts,B.Lauwers, J.Mater.Process.Technol.149(2004)616–622.

[24]J.Oliveira,A.LaLonde,J.Ma,Mater.Des.193(2020),108762.

[25]D.Hagedorn-Hansen,M.Bezuidenhout,D.Dimitrov,G.Oosthuizen,S.Afr.J.

Ind.Eng.28(2017)200–212.

(12)

L.Sunetal. JournalofMaterialsScience&Technology67(2021)11–22

[26]A.Schröffer,J.Prsa,F.Irlinger,T.C.Lüth,in:IEEEInternationalConferenceon RoboticsandBiomimetics,KualaLumpur,Malaysia,December12-15,2018, pp.1894–1899.

[27]M.F.Zaeh,G.Branner,Prod.Eng.4(2010)35–45.

[28]Y.Lu,S.Wu,Y.Gan,T.Huang,C.Yang,L.Junjie,J.Lin,Opt.LaserTechnol.75 (2015)197–206.

[29]D.Ramos,F.Belblidia,J.Sienz,Addit.Manuf.28(2019)554–564.

[30]L.Parry,I.Ashcroft,R.Wildman,Addit.Manuf.25(2019)166–175.

[31]L.Parry,I.Ashcroft,R.D.Wildman,Addit.Manuf.12(2016)1–15.

[32]M.A.Somashekara,M.Naveenkumar,A.Kumar,C.Viswanath,S.

Simhambhatla,Int.J.Adv.Manuf.Technol.90(2016)2009–2025.

[33]L.Ma,H.Bin,Int.J.Adv.Manuf.Technol.34(2006)898–903.

[34]J.Yu,X.Lin,L.Ma,J.Wang,X.Fu,J.Chen,W.Huang,Mater.Sci.Eng.A528 (2011)1094–1104.

[35]A.J.Pinkerton,J.LaserAppl.27(2015),S15001.

[36]P.Michaleris,Z.Feng,G.Campbell,in:1997ASMEPressureVesselsandPiping Conference:ApproximateMethodsintheDesignandAnalysisofPressure VesselsandPipingComponents,Orlando,Florida,USA,January1,1997,pp.

91–102.

[37]M.G.Yuan,Y.Ueda,J.Eng.Mater.Technol.118(1996)229–234.

[38]L.Sun,X.Ren,J.He,J.S.Olsen,S.Pallaspuro,Z.Zhang,Int.J.Adv.Manuf.

Technol.105(2019)2415–2429.

[39]AbaqusAnalysisUser’sGuide,Abaqus2018,DassaultSystèmesSimuliaCorp., 2018.

[40]J.Ding,Thermo-mechanicalAnalysisofWireandArcAdditiveManufacturing Process,Ph.D.Thesis,CranfieldUniversity,UK,2012.

[41]N.Nazemi,IdentificationoftheMechanicalPropertiesintheHeat-affected ZoneofAluminumWeldedStructures,Ph.D.Thesis,UniversityofWindsor, Canada,2015.

[42]M.Meco,S.Andreia,JoiningofSteeltoAluminiumAlloysforAdvanced StructuralApplications,Ph.D.Thesis,CranfieldUniversity,UK,2016.

[43]P.Ferro,F.Berto,N.M.James,Int.J.Fatigue101(2017)421–429.

[44]J.Metelkova,Y.Kinds,K.Kempen,C.deFormanoir,A.Witvrouw,B.Van Hooreweder,Addit.Manuf.23(2018)161–169.

[45]R.Martukanitz,P.Michaleris,T.Palmer,T.DebRoy,Z.K.Liu,R.Otis,T.W.Heo, L.Q.Chen,Addit.Manuf.1-4(2014)52–63.

[46]K.J.Mercelis,RapidPrototypingJ.12(2006)254–265.

[47]E.S.Gary,K.Lewis,Mater.Des.21(2000)417–423.

[49]K.Ren,Y.Chew,Y.F.Zhang,G.J.Bi,J.Y.H.Fuh,J.Mater.Process.Technol.271 (2019)178–188.

Referanser

RELATERTE DOKUMENTER

The difference is illustrated in 4.23, and as we see, it is not that large. The effect of applying various wall treatments is of course most apparent in the proximity of the wall.

gradient. Moreover Appendix D shows that the distances for the gradients in each point can be different depending on how steep the gradients in the [\ and 45 ° -direction are.

It should be noted that, even though the GSR reactors are only part of the process con fi guration depicted in Fig. 1, the term “ GSR ” will be used to describe the entire fl

In these two models, the residual stress distribution can be divided into yield zone, transition zone and edge zone by peak nodal temperature and the peak nodal temperature

Rail Residual Stress Tensor Data Visualization Using Perlin Noise.. The tensor data, represented by equation 3, that we are in- terested in is namely residual stress in a Rail

configurations: different spiral pitch, tests carried out before or after wire activation, and different previous loading history (intact beams, pre-cracked beams, or beams preloaded

It should be noted that the code of conduct is drafted for psychologists in general and not specifically for psychologists in (mental) health care. However, looking at

It should be noted that the code of conduct is drafted for psychologists in general and not specifically for psychologists in (mental) health care. However, looking at
